Using SDI Sources
Using an SDI Source in a Live SD-HD Encoder Job
To select an SDI source in a Live SD-HD Encoder job proceed as follows:
1. Create the Live SD-HD Encoder Job.

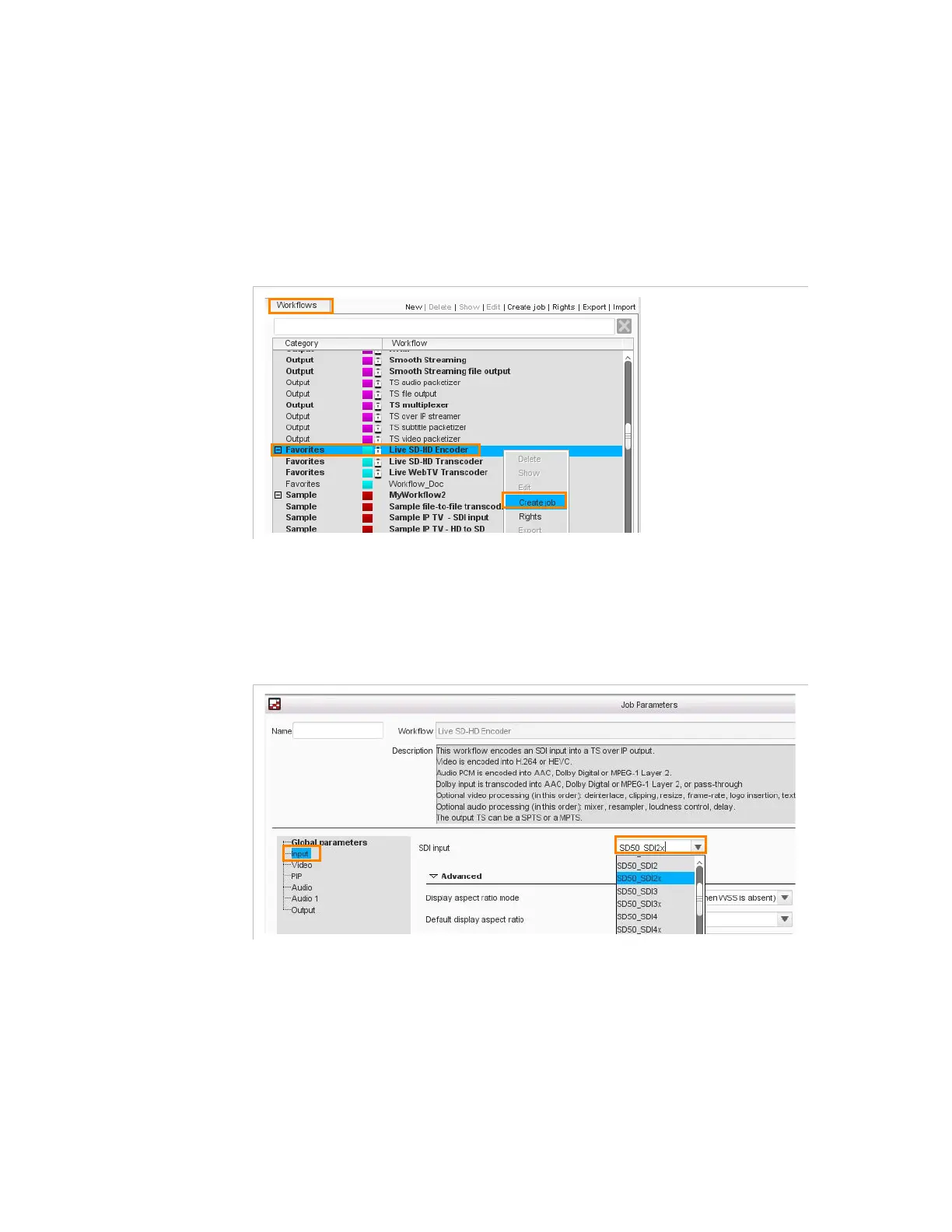

Figure 3-110. Create the Live SD-HD Encoder Job
2. In the Job Parameters view select Global parameters/Input and
choice the SDI source you wish to use among the sources you named
previously.
Figure 3-111. Live SD-HD Encoder job, select a SDI source
3. Build the rest of the job at your convenience.
When you launch a job, if a matrix is used, it is automatically configured.
If static crosspoints have been previously created, they are not modified
(refer to section
’Configuring the Crosspoints of the Matrix’ on
page 154).
