Chapter 3 ’Web User Graphical Interface’ — Workflow Library
Electra VS
-
Version 05.10 261
User Manual - Rev. A
RTMP Audio Extractor
Description
The RTMP Audio Extractor processing component lets you extract an
AAC audio stream from a RTMP input stream. The output stream can be
forwarded to an audio decoder, for example.

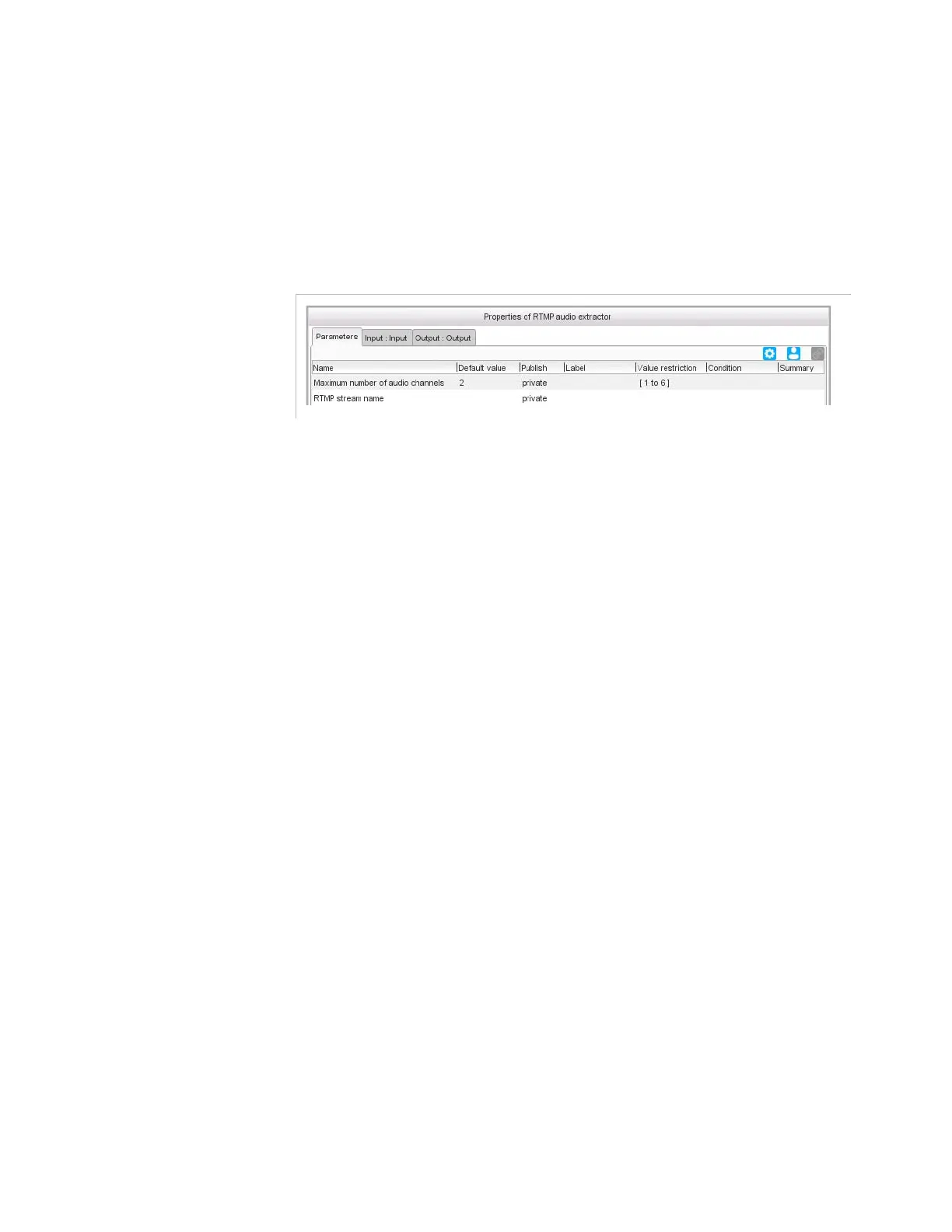

Figure 3-231. RTMP audio extractor parameters
Parameters
For this processing component, you must set the following parameters:
Maximum number of audio channel
: maximum number of
audio channel that this input can receive. This information is essential
for the load-balancer as it will use it to allocate resources (CPU,
memory, license).
RTMP stream name
: this parameter identifies the stream in the
RTMP session.
Auto
: the stream name is not checked.
Value
: the stream name is verified, if it is different from the
configured one, the audio will not be extracted.
