Chapter 3 ’Web User Graphical Interface’ — GUI Description
Electra VS
-
Version 05.10 207
User Manual - Rev. A
Snapshot Tab
The
Snapshot
view is available for jobs that include a TS file input ora
TS over IP input.
It provides a tree representation of the transport streams’ composition,
basing itself on MPEG, DVB or ATSC tables, as specified in the workflow
or snapshot configuration.
Note that ghosts PID are not displayed.

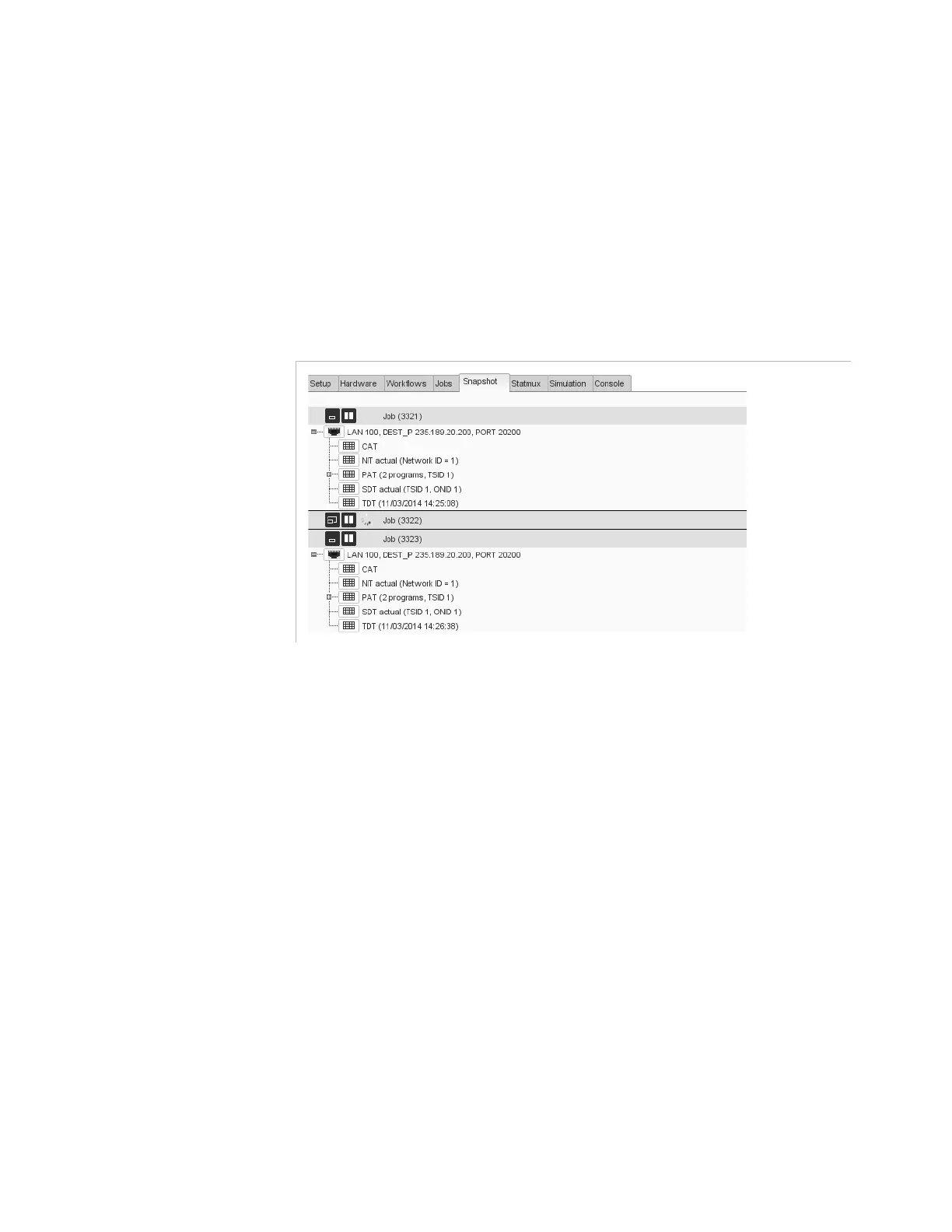

Figure 3-171. Snapshot view
To know how to create a snapshot view, refer to section
’Using the
Snapshot View’
on page 114.
