Harmonic ELECTRA VS - Conversions According to Input AFD and Output Display Aspect Ratio

Appendix H ’Aspect Ratio Conversions’
588 Electra VS - Version 05.10
User Manual - Rev. A
Conversions according to input AFD and output display
aspect ratio

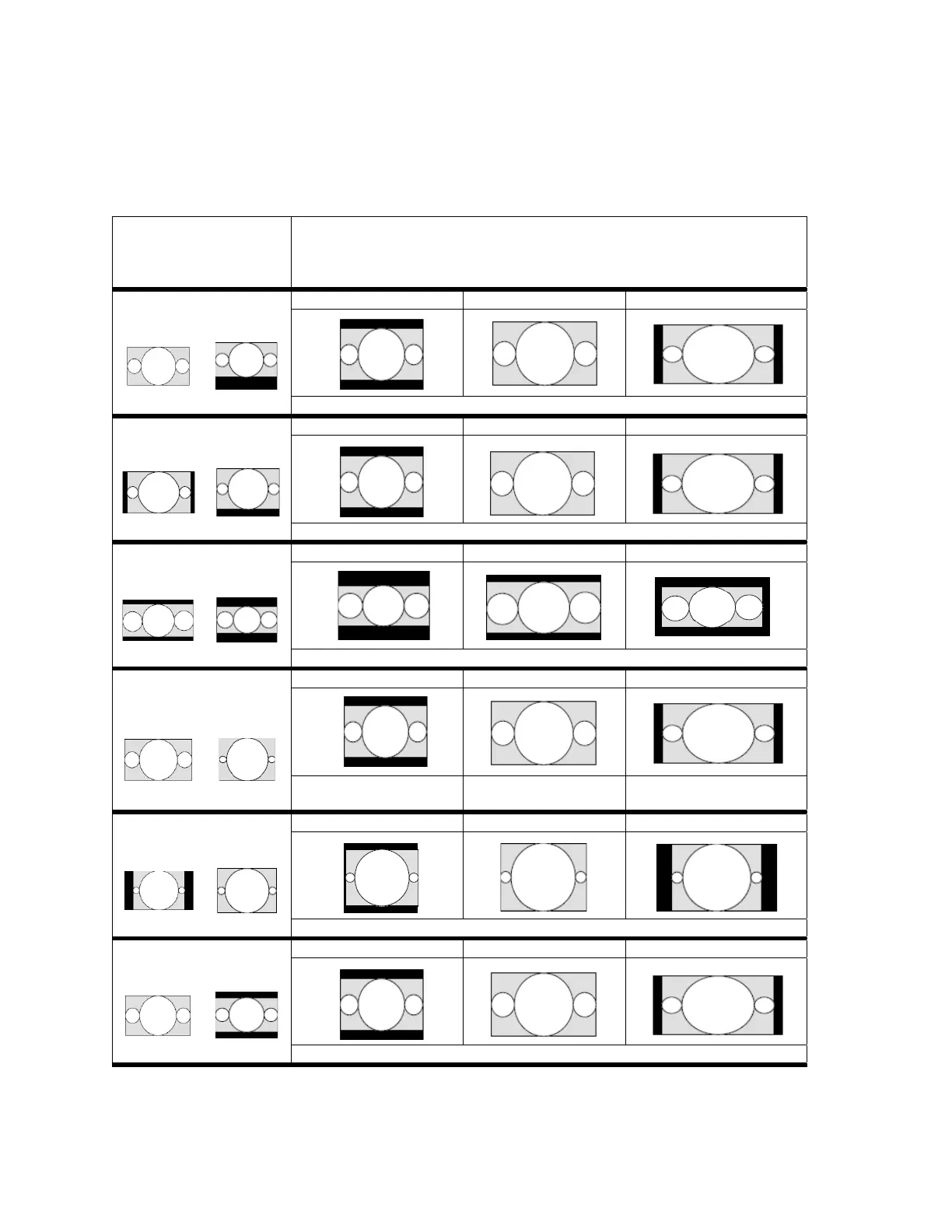

Tab l e H- 1. ConversionaccordingtoinputAFDandoutputdisplayaspectratio
Input AFD
16:9 4:3
Conversion according to output display aspect ratio
2
Box 16:9 Top
< 16:9 16:9 > 16:9
AFD 10 (16:9 centre)
3
Box 14:9 (Top)
< 14 :9 14 :9 > 14 :9
AFD 11 (14:9 centre)
4
Box > 16:9 (Centre)
< 16 :9 16:9 > 16 :9
AFD 4 (Box > 16:9 centre)
8
As the coded frame
< Input DAR Input DAR > Input DAR
AFD according to source display
aspect ratio (see table below)
AFD 8 (As the coded
frame)
AFD according to source display
aspect ratio (see table below)
9
4:3 (Centre)
< 4 :3 4 :3 > 4 :3
AFD 9 (4:3 centre)
10
16:9 (Centre)
< 16 :9 16 :9 > 16 :9
AFD 10 (16:9 centre)
