MXF Uncompressed Audio Extractor
Description
The MXF Uncompressed Audio Extractor processing component
lets you extract an uncompressed audio stream from an MXF file. The
output stream can be forwarded to a coder, for example.

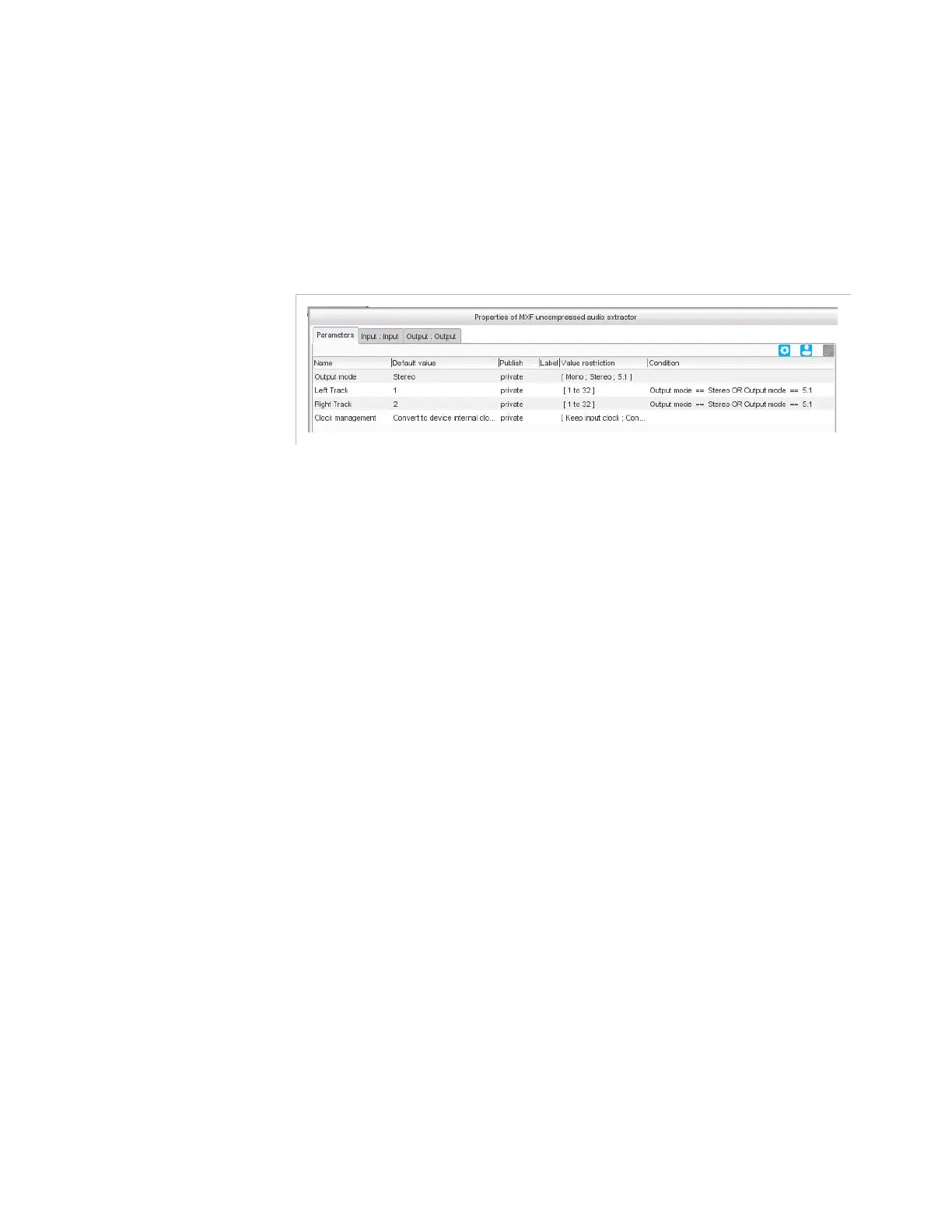

Figure 3-235. MXF uncompressed audio extractor parameters
Parameters
For this processing component, you must set the following parameters:
 Output mode : Mono , Stereo or 5.1 .
 xxxx Track : Each output channel can be assigned an input track.
When the input track is set to
None or is missing from the input file,
the output channel is muted (a silence is generated).
 Clock management : if set to Convert to device internal clock
(default value), then the input clock is converted to the device clock. If
set to
Keep input clock , then the input clock is kept. When you want to
multiplex components from different input programs (to create a
mosaic for instance), the clocks shall be converted to the device clock.
