Chapter 2 ’Installation and Startup’ — Hardware Delivery
38 Electra VS - Version 05.10
User Manual - Rev. A
 On a G9 server:
 Slot 0: optional SDI board (dual, quad or octo) or 3G-SDI quad
board
 Slot 1: optional SDI board (octo) or optional hardware
accelerator board for UHD encoding
 Slot 2: Optional hardware accelerator board for UHD encoding

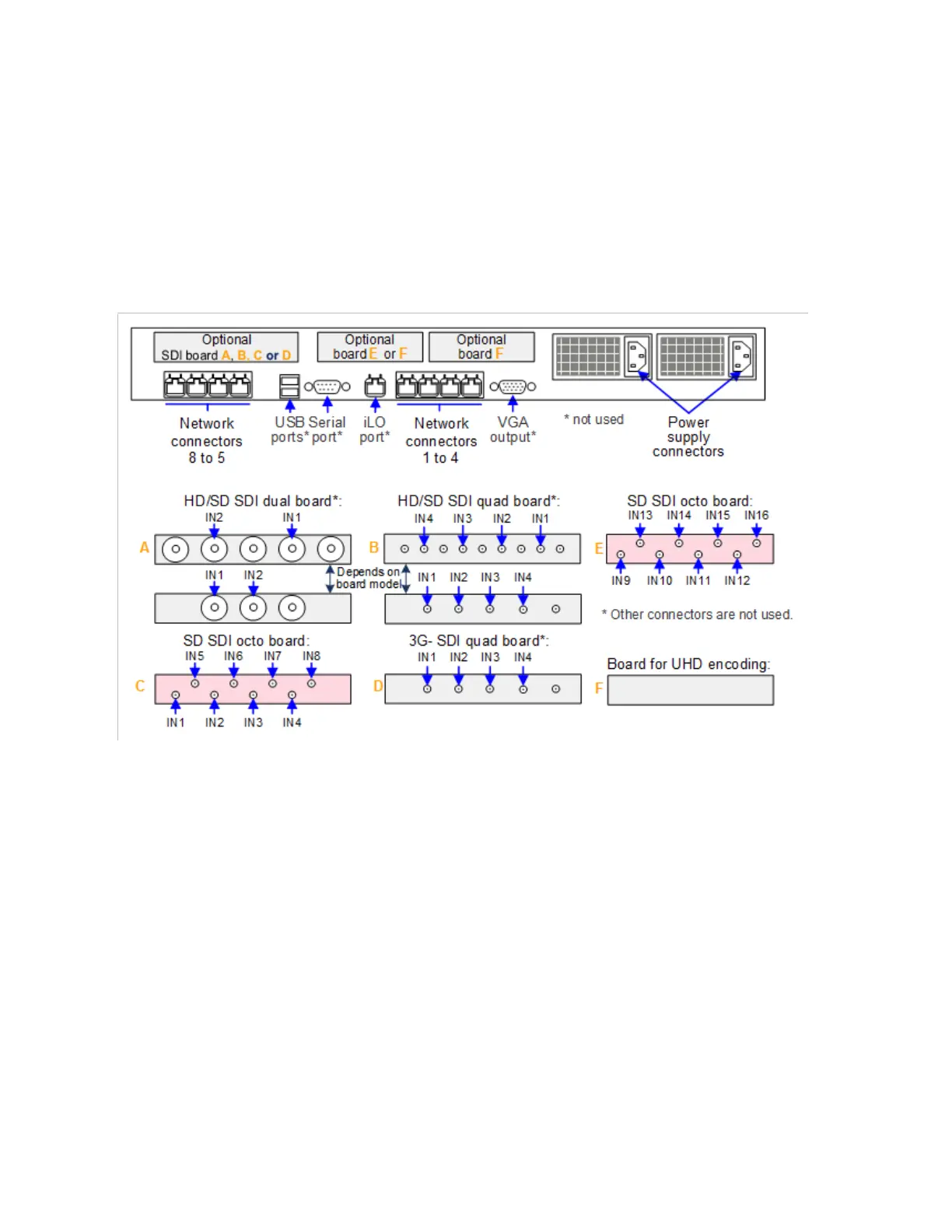

Figure 2-12. G9 1RU server rear panel connector
HP Documentation
HP provides a number of documents for their blade centers. These
documents are available on the HP Web site, but you can also find them
on the DVD-ROM delivered with the Electra VS:
 HP BladeSystem c7000 Enclosure - Setup and Installation Guide
 HP BladeSystem c3000 Enclosure - Setup and Installation Guide
 HP Troubleshooting Guide
 HP Virtual Connect - Ethernet Networking Scenario Cookbook
 BladeSystem for ProLiant Release Set Compatibility Table
 HP BladeSystem Onboard Administrator - User Guide
 HP Virtual Connect for c-Class BladeSystem - Setup and Installation
Guide
