Chapter 2 ’Installation and Startup’ — Hardware Delivery
Electra VS - Version 05.10 37
User Manual - Rev. A
 On a G8 server:
 Slot 0: 4 Ethernet interfaces
 Slot 1: optional SDI board (dual, quad or octo)
 Slot 2: optional additional Ethernet board or SDI board (octo)

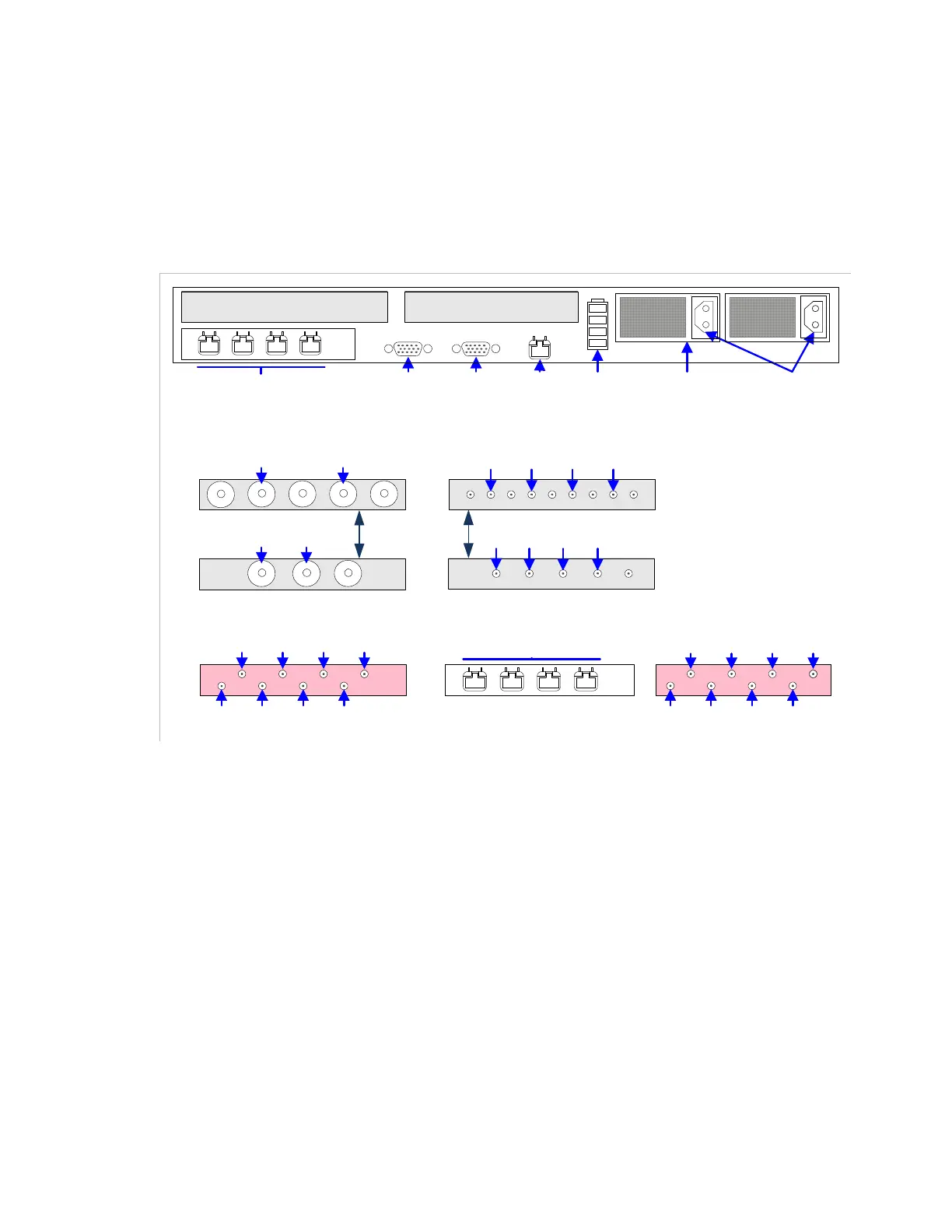

Figure 2-11. G8 1RU server rear panel connector
Optional board D
(network) or E (SDI)
VGA
output*
Serial/
COM
port*
Network connectors
4 to 1
iLO
port*
Power
supply
connectors
Optional
redundant power
supply unit
Optional SDI board A, B or C
USB
ports*
* not used
* Other connectors are
not used.
HD/SD SDI dual board*:
IN2 IN1
A
SD SDI octo board:
IN1 IN2 IN3 IN4
IN5IN6IN7IN8
C
Optional additional network
connectors (8 to 5)
D
IN13 IN14 IN15 IN16
IN10 IN11 IN12
SD SDI octo board:
IN9
E
B
HD/SD SDI quad board
*:
IN4
IN3 IN2 IN1
IN1 IN2
Depends on
board model
IN1 IN2 IN3 IN4
