Appendix A ’Technical Specifications’ — Hardware Delivery Specifications
506 Electra VS
-
Version 05.10
User Manual - Rev. A
HP 1RU Hardware available Configurations
Refer to section
’Ordering Guide’
on page 544.
1RU G8 Hardware available configurations
The following 1-RU platforms may be ordered
ELC-VS-1U-2AC-SYS/ ELC-VS-1U-2AC-PRO + ELC-VS-HW-GIGE-4:
Server with 8 IP network connectors

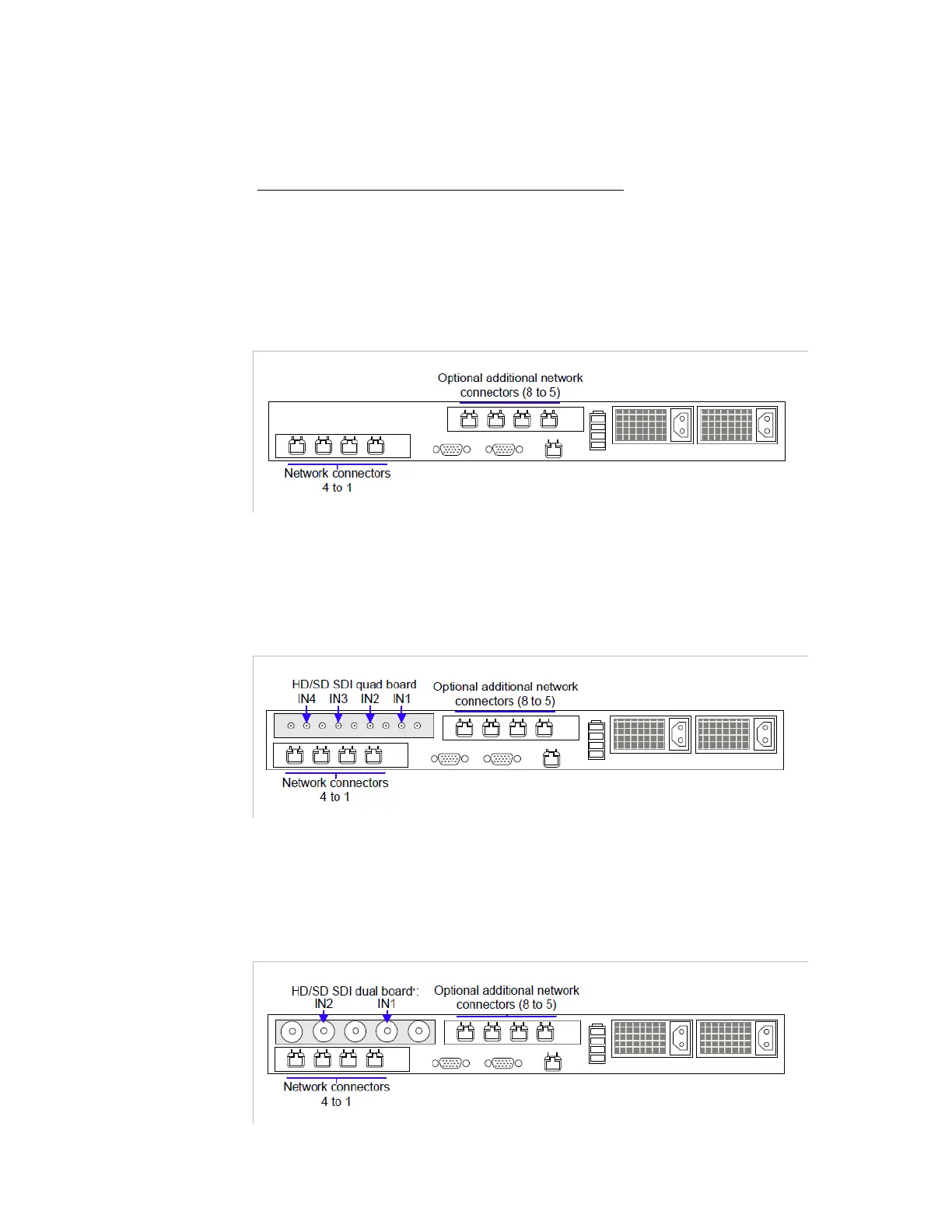

Figure A-1. G8 server with 8 IP network connectors
ELC-VS-1U-2AC-SYS/ ELC-VS-1U-2AC-PRO + ELC-VS-HW-GIGE-4
(mandatory) + ELC-VS-HW-HDSDI-4:
Server with 8 IP network connectors and 4 SD-SDI/HD-SDI inputs
Figure A-2. G8 server with 8 IP network connectors and 4 SD-SDI/HD-SDI inputs
ELC-VS-1U-2AC-SYS/ ELC-VS-1U-2AC-PRO + ELC-VS-HW-GIGE-4
(mandatory) + ELC-VS-HW-HDSDI-2:
Server with 8 IP network connectors and 2 SD-SDI/HD-SDI inputs
Figure A-3. G8 server with 8 IP network connectors and 2 SD-SDI/HD-SDI inputs
