Chapter 3 ’Web User Graphical Interface’ — Workflow Library
Electra VS
-
Version 05.10 285
User Manual - Rev. A
DVB Subtitle Inserter
Description
This workflow burns DVB Subtitles in the associated video.
It allows, for a TS input program that contains DVB Subtitles, to extract
the subtitles and burn them in the video.

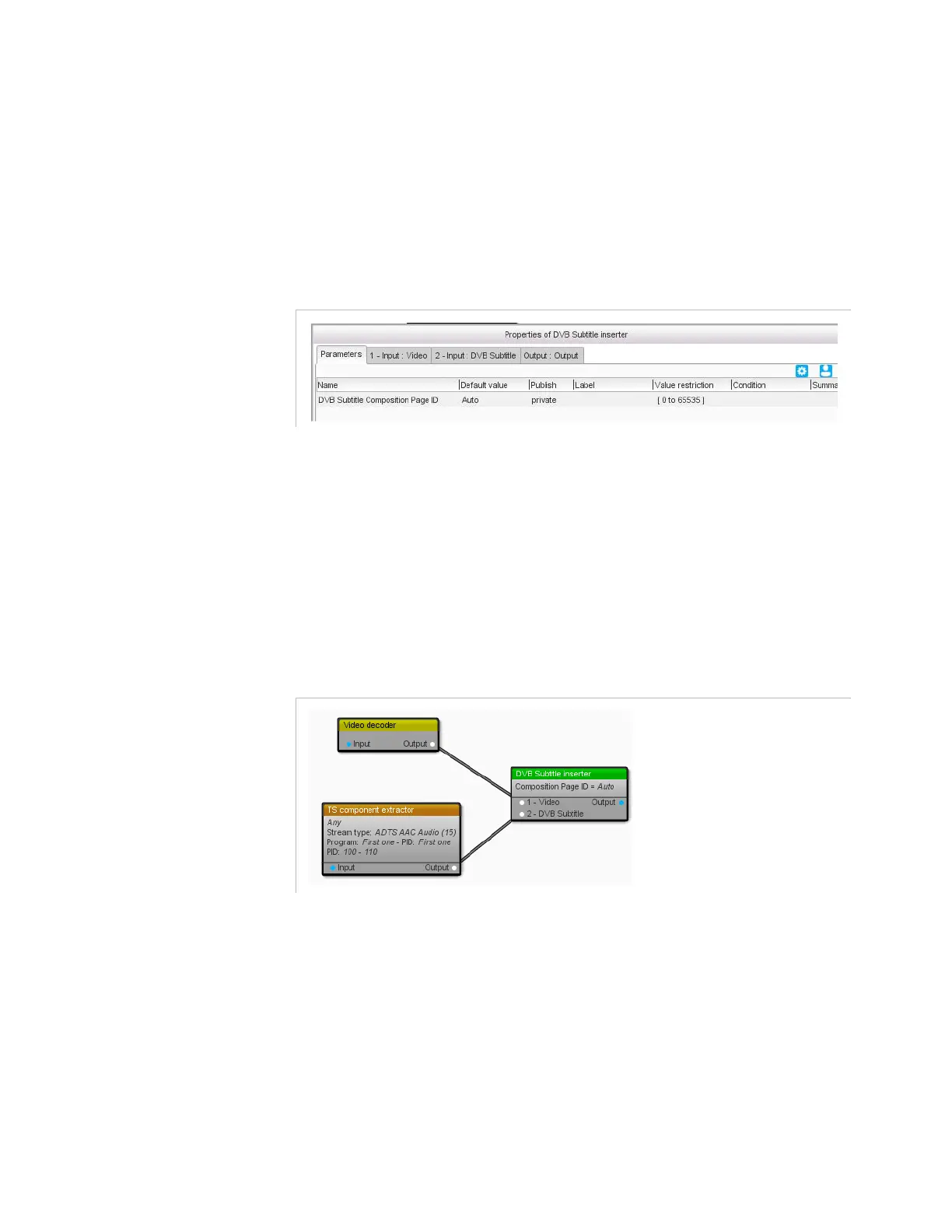

Figure 3-255. DVB subtitle inserter parameters
As indicated in
Figure 3-256
:
the video input shall be connected directly to the output of the
Video
decoder
processing component.
Note: you can insert a deinterlace between the decoder and this
workflow, but you shall not add a resize or a clipping.
the DVB Subtitle input shall be connected directly to the output of a
TS component extractor
processing component, that extracts the
PID that contains the DVB Subtitle for the video.
Figure 3-256. DVB subtitle inserter connection with inputs
Parameters
DVB Subtitle Composition Page Id
: set the composition-page-id
of the DVB Subtitles that shall be inserted. You can set to
Auto
, the
composition-page-id will then be automatically discovered.
