Harmonic ELECTRA VS - TS Multiplexer

Chapter 3 ’Web User Graphical Interface’ — Workflow Library
Electra VS - Version 05.10 327
User Manual - Rev. A
TS Multiplexer
Description
The TS Multiplexer processing component multiplexes transport
packets in an MPEG-2 TS (SPTS or MPTS, no stat mux).

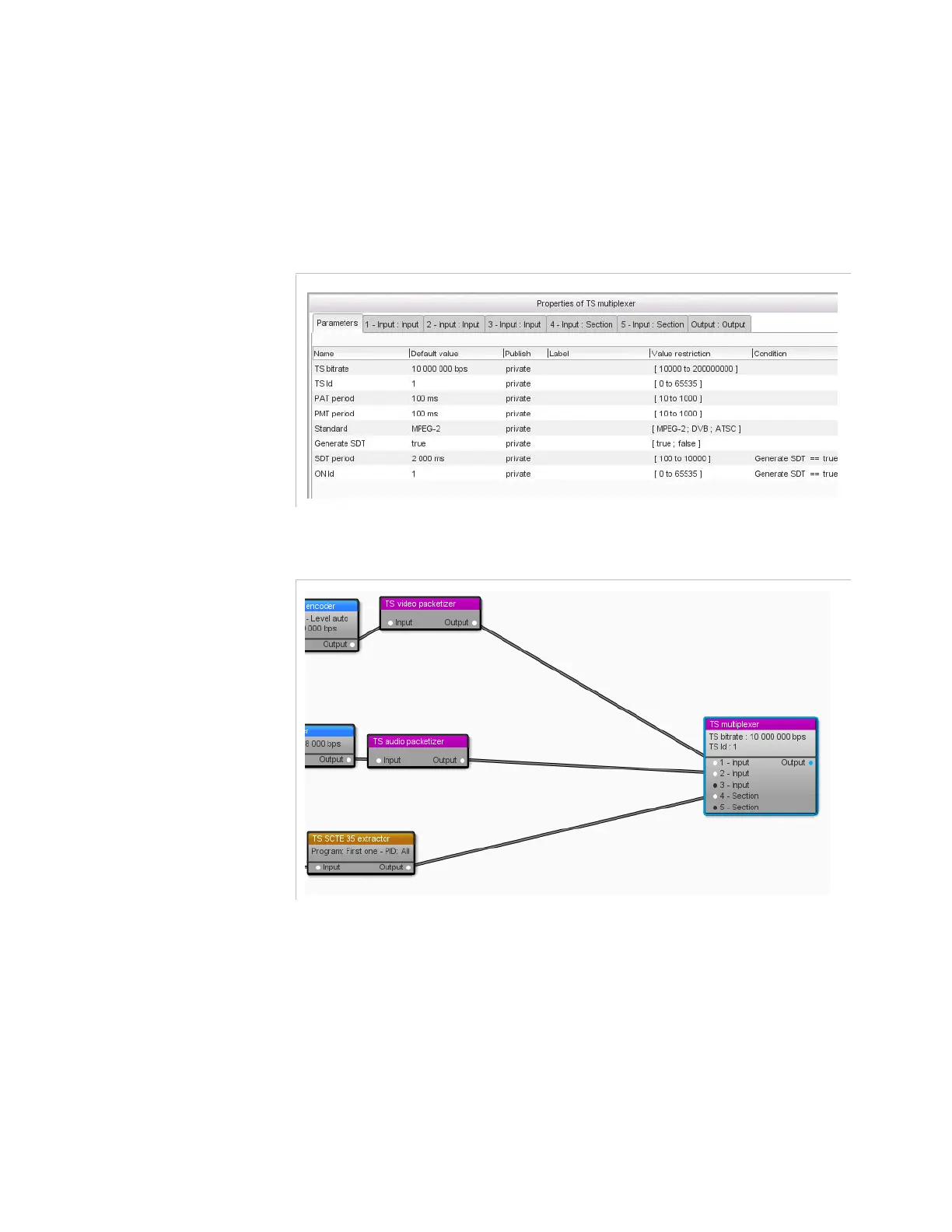

Figure 3-294. TS multiplexer parameters
Figure 3-295. Input: Input tab and Input: Section tab
Parameters
For this processing component, you must set the following parameters:
In the
Parameters tab,
 TS bitrate : set the TS rate in bits per second.
 TS ID
 PAT period : define the period of the PAT, in milliseconds. 
Note: This value is used by Electra VS to set the maximum interval for
the table. The real interval value may be lower (down to 50%).
Input: (TS) input,
Input: Section,
Input: (TS) input,
Input type ‘program’
Input type ‘component’
Input type ‘component’
