Harmonic ELECTRA VS - RTMP Video Extractor

Chapter 3 ’Web User Graphical Interface’ — Workflow Library
260 Electra VS - Version 05.10
User Manual - Rev. A
RTMP Video Extractor
Description
The RTMP video Extractor processing component lets you extract an
video stream from a RTMP input stream. The output stream can be
forwarded to a video decoder, for example.

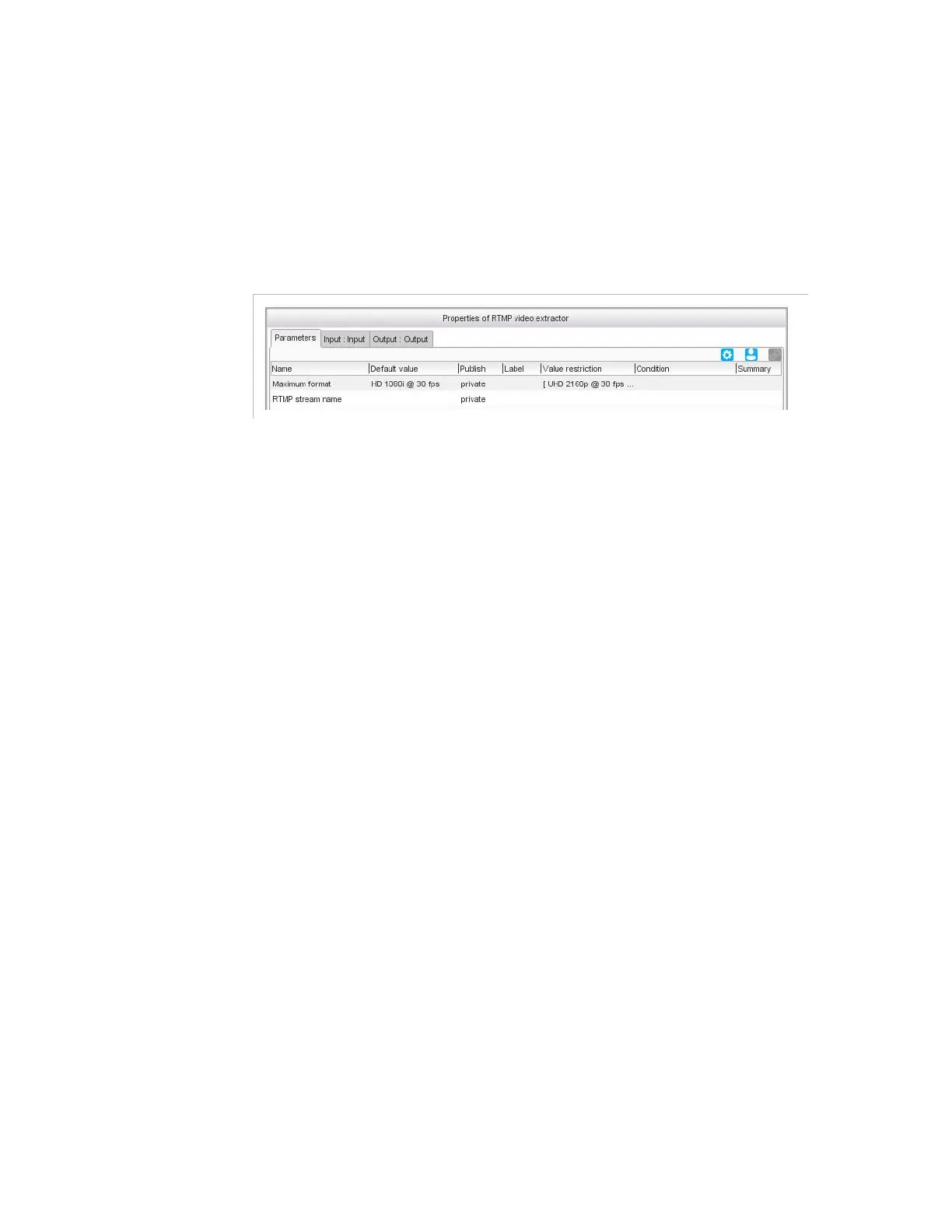

Figure 3-230. RTM video extractor parameters
Parameters
For this processing component, you must set the following parameters:
 Maximum Format : maximum format that this input can receive.
This information is essential for the load-balancer as it will use it to
allocate resources (CPU, memory, license). If you choose
Custom , set
the
Maximum picture size and Maximum frame rate fields.
 RTMP stream name : this parameter identifies the stream in the
RTMP session.
 Auto : the stream name is not checked.
 Value : the stream name is verified, if it is different from the
configured one, the video will not be extracted.
