Harmonic ELECTRA VS - Audio Decoder; Decoding; Dolby E Decoder

Chapter 3 ’Web User Graphical Interface’ — Workflow Library
270 Electra VS - Version 05.10
User Manual - Rev. A
Decoding
Audio Decoder
Description
Decode AAC-LC/AAC-HEv1/AAC-HEv2, Dolby Digital/Dolby Digital Plus,
MPEG-1 Layer 2 audio.

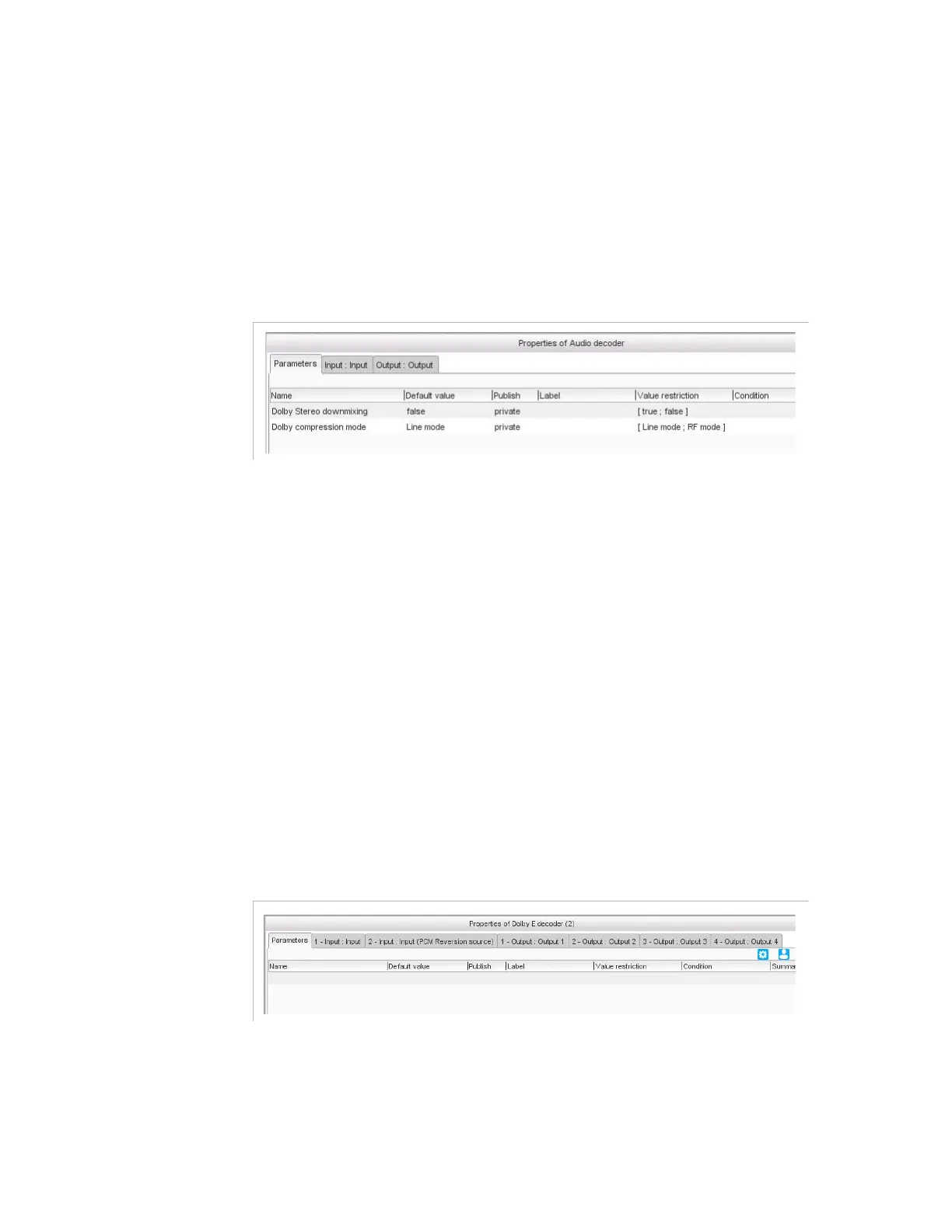

Figure 3-240. Audio decoder parameters
Parameter
For this processing component, you must set the following parameters:
 Dolby stereo downmixing : the decoder can be configured to
downmix a Dolby Digital/Dolby Digital Plus 5.1 input to a stereo
output. If the input is different from Dolby Digital/Dolby Digital Plus
5.1, this parameter is ignored.
 Dolby compression mode : Controls the dynamic of the decoded
audio signal. For the output level, select between
Line mode and RF
mode
. RF mode can provide a better rendering when decoding audio
with voices.
Dolby
®
E Decoder
Description
This workflow decodes Dolby E audio.
Figure 3-241. Dolby E decoder parameters
