Appendix B ’SNMP Management’ — MIB Description
552 Electra VS
-
Version 05.10
User Manual - Rev. A
MIB Description
Electra VS can be monitored via SNMP (v1 or v2). The parameters may
be consulted at any time. You may then check its status and get the lists
of active and closed logs (alarms and events).
Furthermore, SNMP TRAPs are used to send notification of logs of the
equipment. On the DVD-ROM provided with Electra VS, you will find a
MIB file in the MIB directory. The MIB details how to monitor the
equipment.

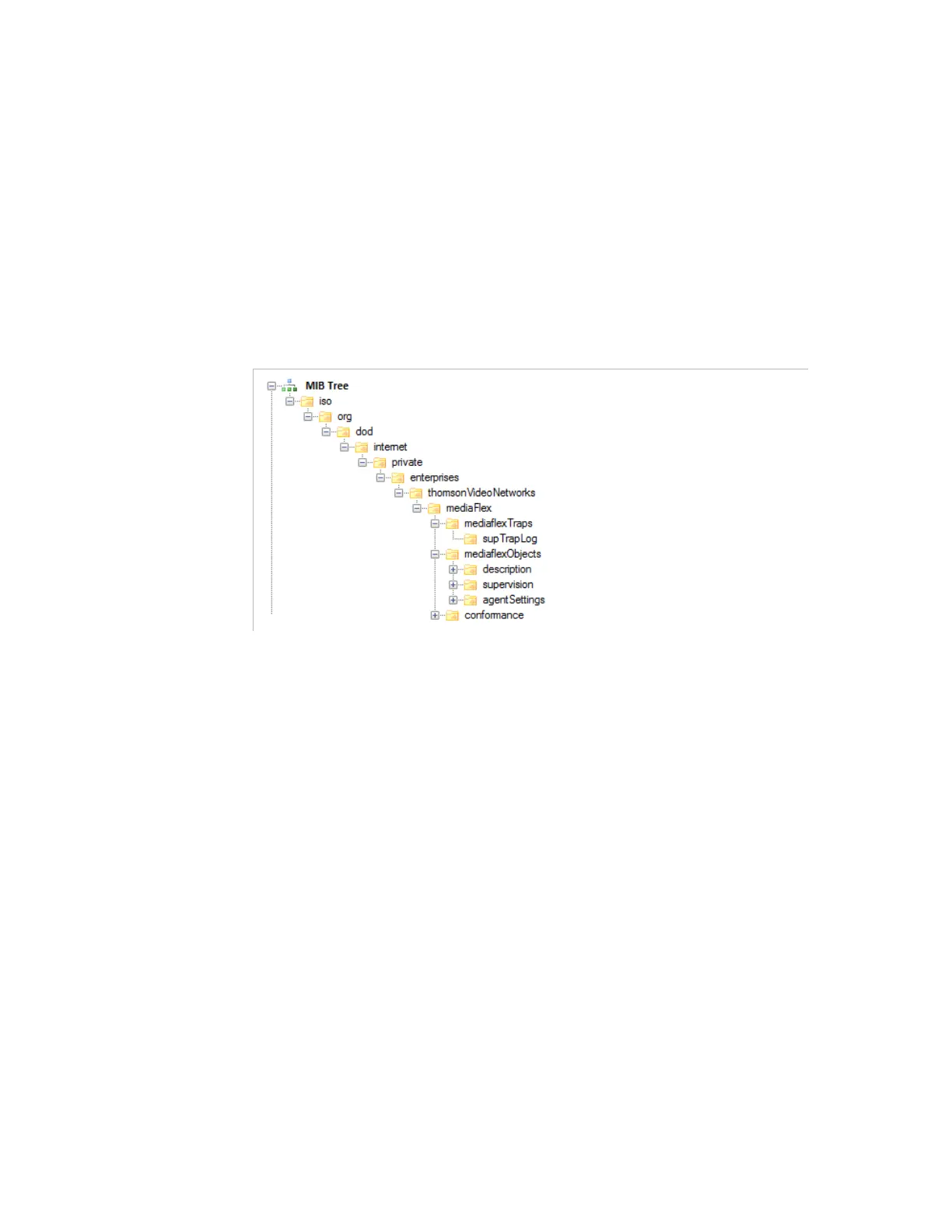

Figure B-1. Electra VS MIB
The Electra VS MIB is composed of a number of parts:
Traps (see
Paragraph ’Trap Descriptions’
on page 553 for more
details),
Objects:
Description: containing the equipment serial number and
version (these elements are also available in the
About
box).
Supervision: containing the current status, the active log list and
the closed log list.
Agent Settings: containing the SNMP agent configuration (Trap
addressee).
Conformance.
The MIB contains useful information in the description of each field.
The Electra VS equipment can send notifications to SNMP managers
when the status of the equipment changes (each time an alarm appears
or disappears or an event occurs).
