Chapter 2 ’Installation and Startup’ — Hardware Delivery
36 Electra VS
-
Version 05.10
User Manual - Rev. A

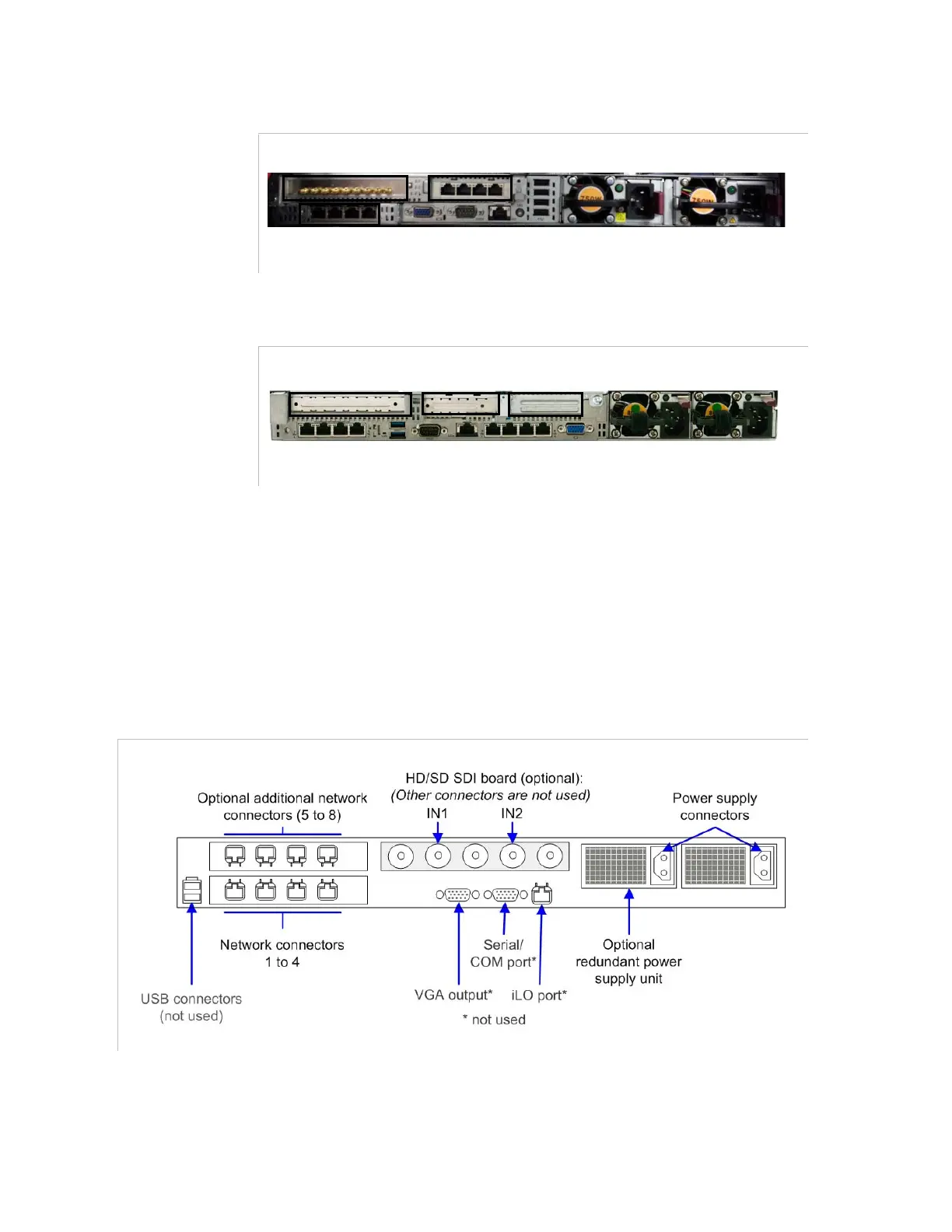

Figure 2-8. Electra VS G8 1RU server rear panel
Figure 2-9. Electra VS G9 1RU server rear panel
Depending on the server, the content of the slots may vary:
On a G7 server:
Slot 0: 4 Ethernet interfaces
Slot 1: optional additional Ethernet board
Slot 2: optional SDI board
Figure 2-10. G7 1RU server rear panel connector
