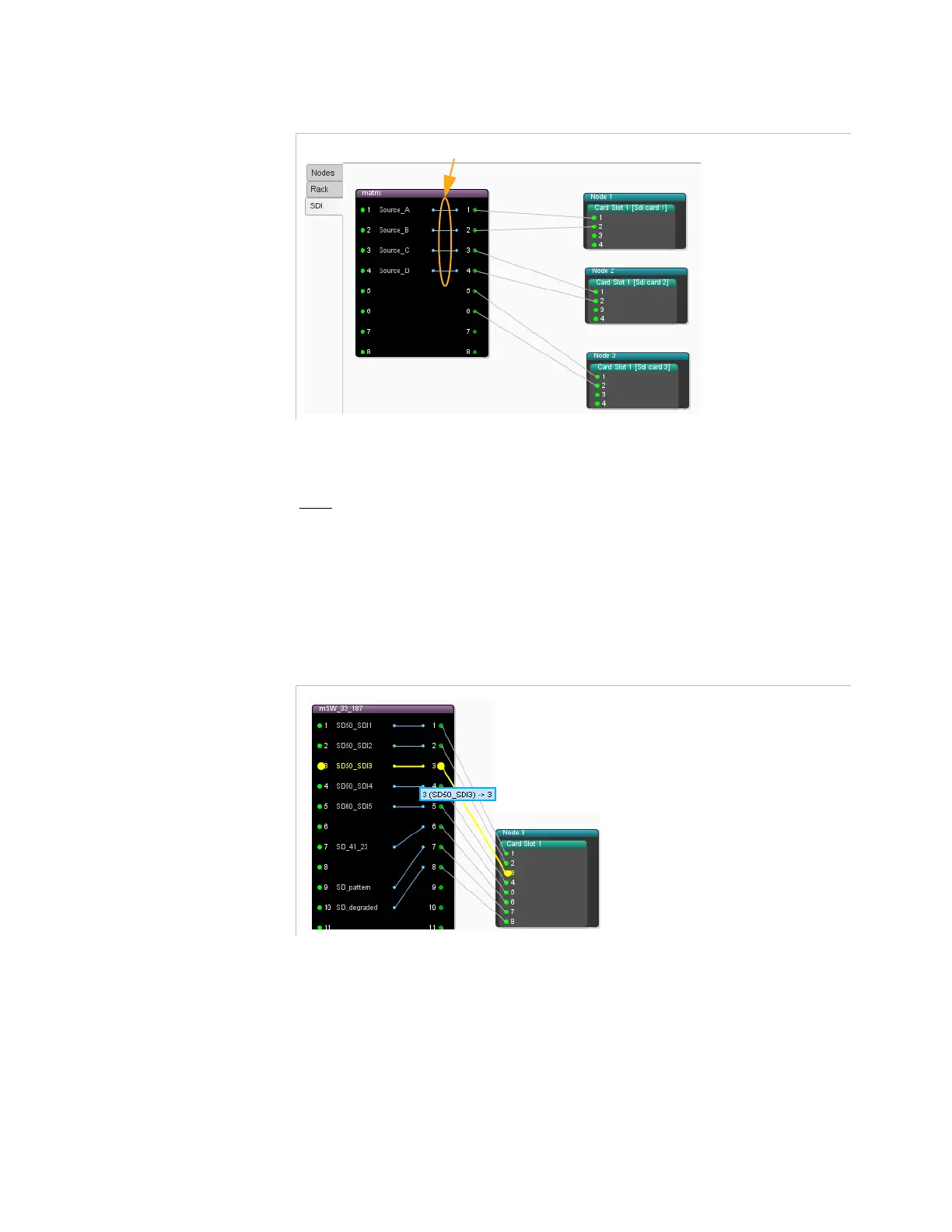

Figure 3-108. Linking the SDI inputs to the matrix
For more information on the SDI category, see section
’Hardware/SDI
Panel’
on page 188.
Tips
:
When placing the cursor over an internal crosspoint of the matrix, a
tooltip is displayed to help you identify matrix’ connections.
You can copy the internal crosspoints of the matrix to the clipboard
and paste them into a text or Excel document.
Figure 3-109. SDI matrix with a tooltip
Nominal node
Nominal node
Redundant node
Static crosspoints
