Chapter 3 ’Web User Graphical Interface’ — Workflow Library
Electra VS - Version 05.10 335
User Manual - Rev. A
 Statmux pool global bitrate : define the bitrate value that will be
allocated for statistical encoding. Only the video components
controlled by the statmux will use this bitrate. This bitrate must be
under the TS total bitrate so as to keep bandwidth for non-statmuxed
components (audio, video CBR, signalization, pass-through
components).

If you wish to create a simple MPTS without using the statmux
feature, leave this parameter to
unused .
 TS ID
 Standard : set the standard that the output TS should respect (DVB,
MPEG-2 or ATSC).
 PAT period : enter the period of the PAT, in milliseconds.
 PMT period : enter the period of all the PMT, in milliseconds.
 Define backup output : set to true if you wish to use a backup
output and define its characteristics.
 Generate SDT : If set to true , a SDT will be created and filled using
the TS Id, ON Id, Service type, Service name and Provider name
configured in the multiplexer.
 SDT Period : enter the period of the SDT in milliseconds.
 ON Id : enter the Original Network Id.
Input Tab

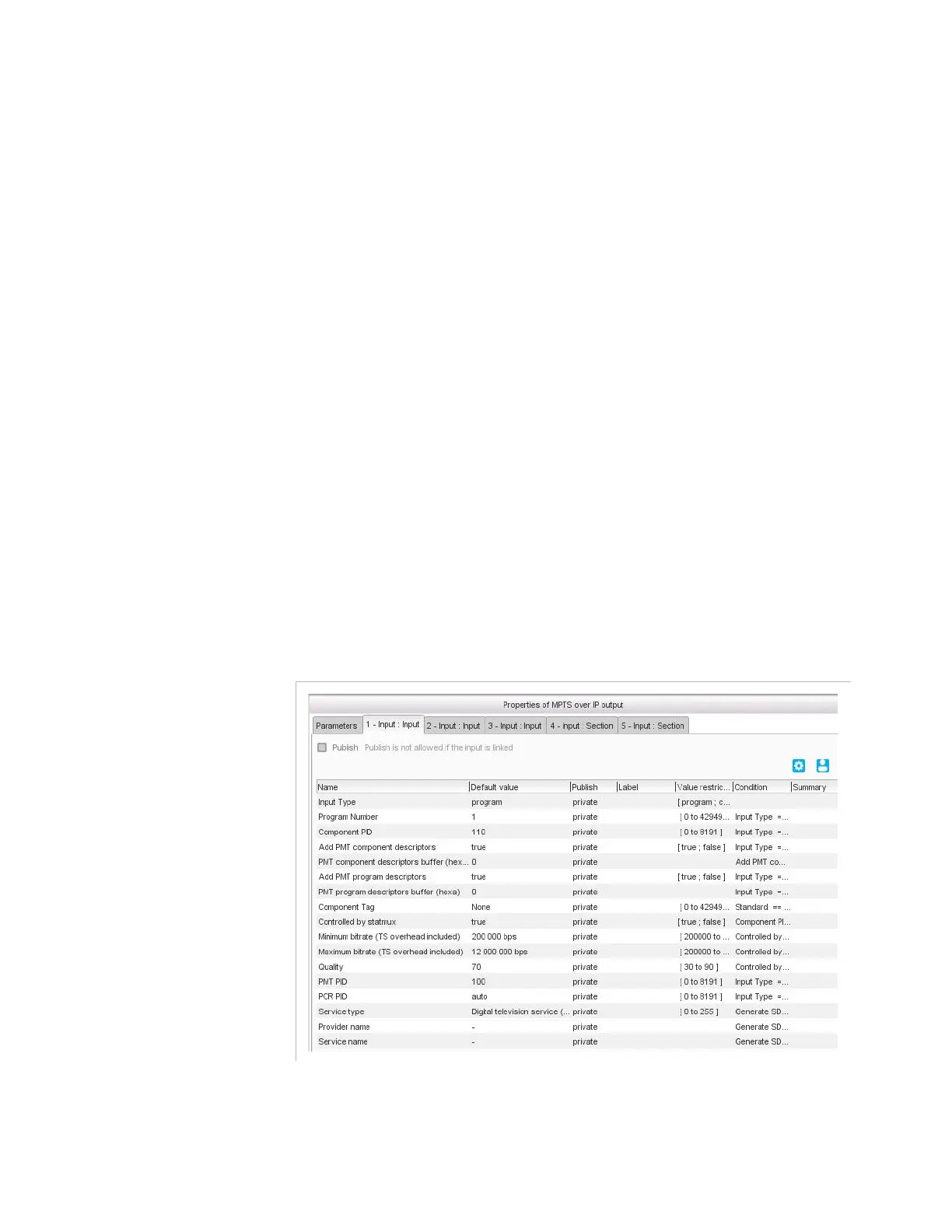

Figure 3-304. MPTS over IP output parameters – Input tab
