Chapter 3 ’Web User Graphical Interface’ — Workflow Library
Electra VS - Version 05.10 241
User Manual - Rev. A
 UDP port : set the port used to get the stream.
 Select source IP address : set to true if you want to choose the
source of the stream. In this case, fill in the
Source IP address field.
You can specify only one source IP address. If you do this, only the
datagrams from this source IP address are used. SSM mode is used to
join a multicast input stream only if IGMP version 3 is configured in
System parameters (
Setup tab, IP category).
 Synchro loss threshold : set the number of milliseconds after
which the absence of signal in input is considered a loss of
synchronization raising an alarm and a backup switch-over (if any).
 Maximum TS bitrate : enter the maximum bit rate of the transport
stream, in bits per second. Be sure to set a correct value as the system
will use it to decide which node will be able to manage this input.
 Define backup input : set to true if you want to define a backup
input for this input. In that case, enter values in the
Backup input IP
address
and Backup input UDP port fields.
 Monitoring view : set to True if you want to create a snapshot view
for this input. In this case, indicate the
Standard that the input
stream respects (DVB, MPEG-2 or ATSC), so that suitable information
will be displayed.
 Standard : select the standard between MPEG-2 , DVB , ATSC .
 Add latency for network jitter smoothing : set to 0 ms if you
want to reduce the product latency and if your input streams have low
jitter. If your input stream have a high level of jitter, it is recommended
to increase the value.

1s to correspond to the product previous behavior in version v03.08
and below.
TS file input processing component supports:
 SPTS in CBR and VBR (i.e. without stuffing packets) modes
 MPTS in CBR mode only (MPTS in VBR mode are not supported)

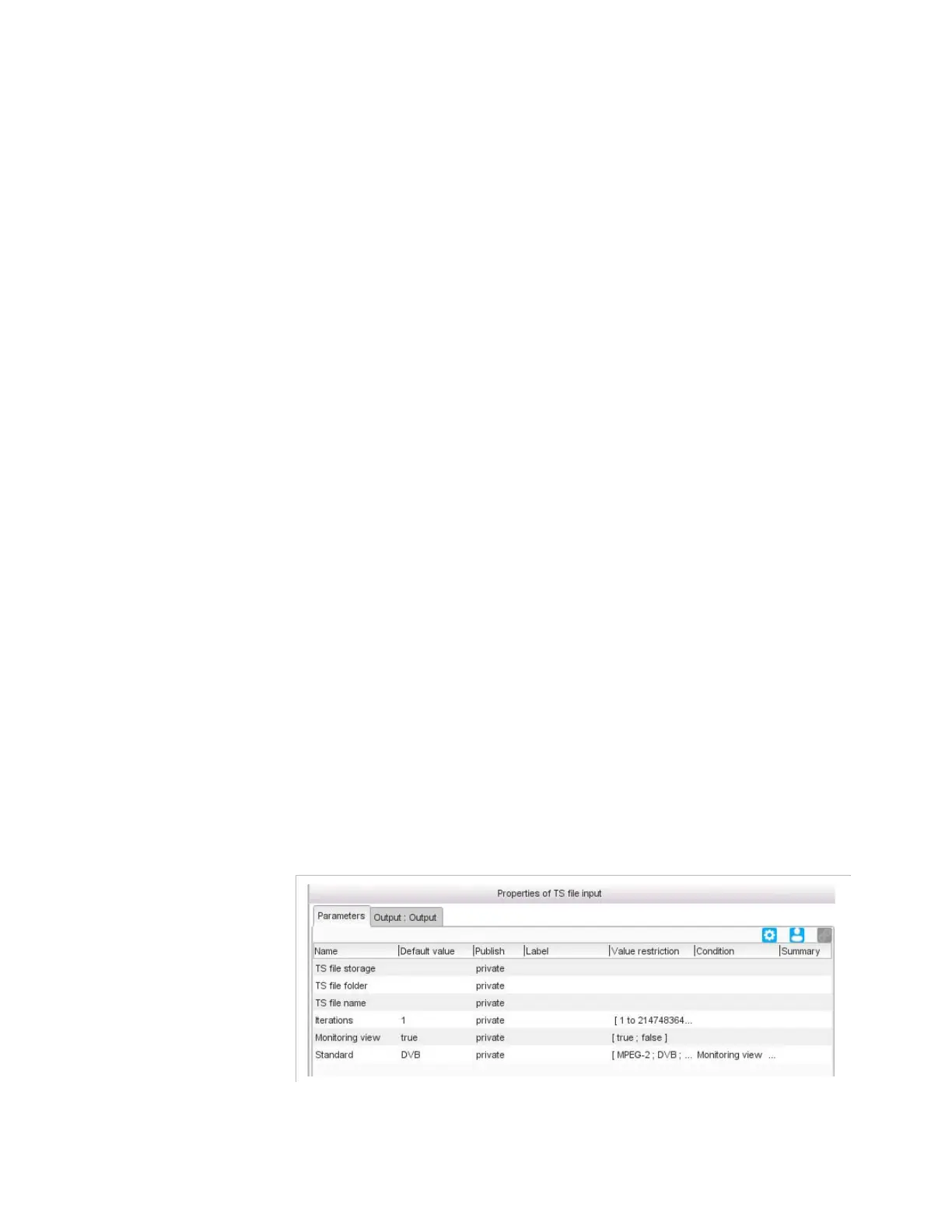

Figure 3-220. TS file input parameters
