Chapter 3 ’Web User Graphical Interface’ — Workflow Library
230 Electra VS
-
Version 05.10
User Manual - Rev. A
The Workflow Library is made up of the following elements.
Processing components
: they constitute a workflow.

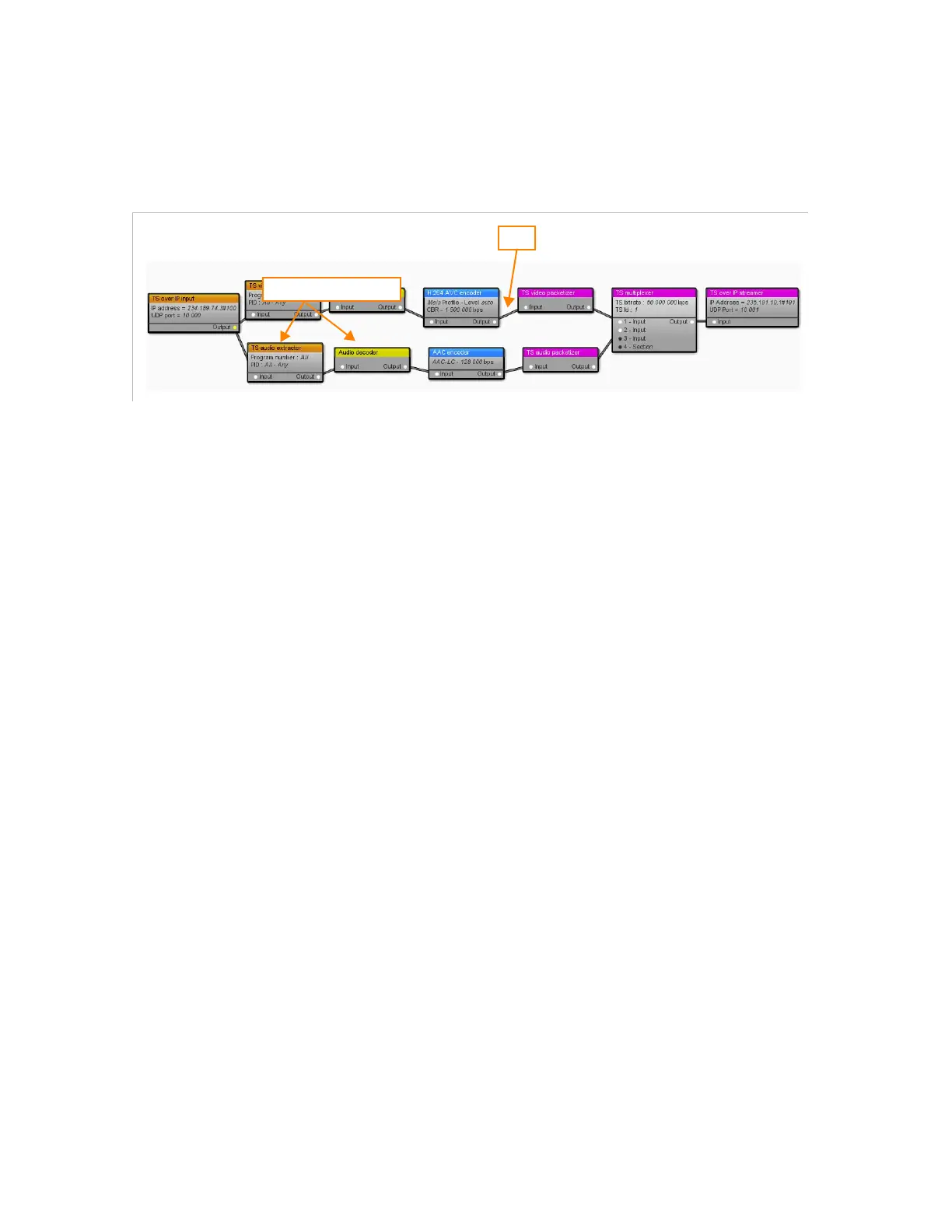

Figure 3-202. Workflow example
In the example above, the workflow is made up of 10 interconnected
processing components: TS over IP input, TS video extractor, TS
audio extractor, Video Decoder, Audio decoder, H.264 AVC encoder,
AAC-HE v2 encoder, TS video packetizer, TS audio packetizer, TS
Multiplexer, TS over IP streamer.
Selector and Choice tools
: they let you define a condition to choose
the input or output of a processing component that should be used,
respectively.
Favorite workflows
: they are proposed preferentially when creating
a job. The following predefined workflows are available:
Live SD-HD Encoder
Live SD-HD Transcoder
Live WebTV Transcoder
You can add your own workflows in this category for a direct access
when you create a job.
Sample workflows
: If the predefined workflows do not fully match
your requirements, you may build your own workflows from sample
workflows delivered in the DVD-ROM.
