Chapter 3 ’Web User Graphical Interface’ — Workflow Library
276 Electra VS
-
Version 05.10
User Manual - Rev. A
Use audio loudness control
: performs automatic loudness
control, static loudness control, or is a peak limiter.

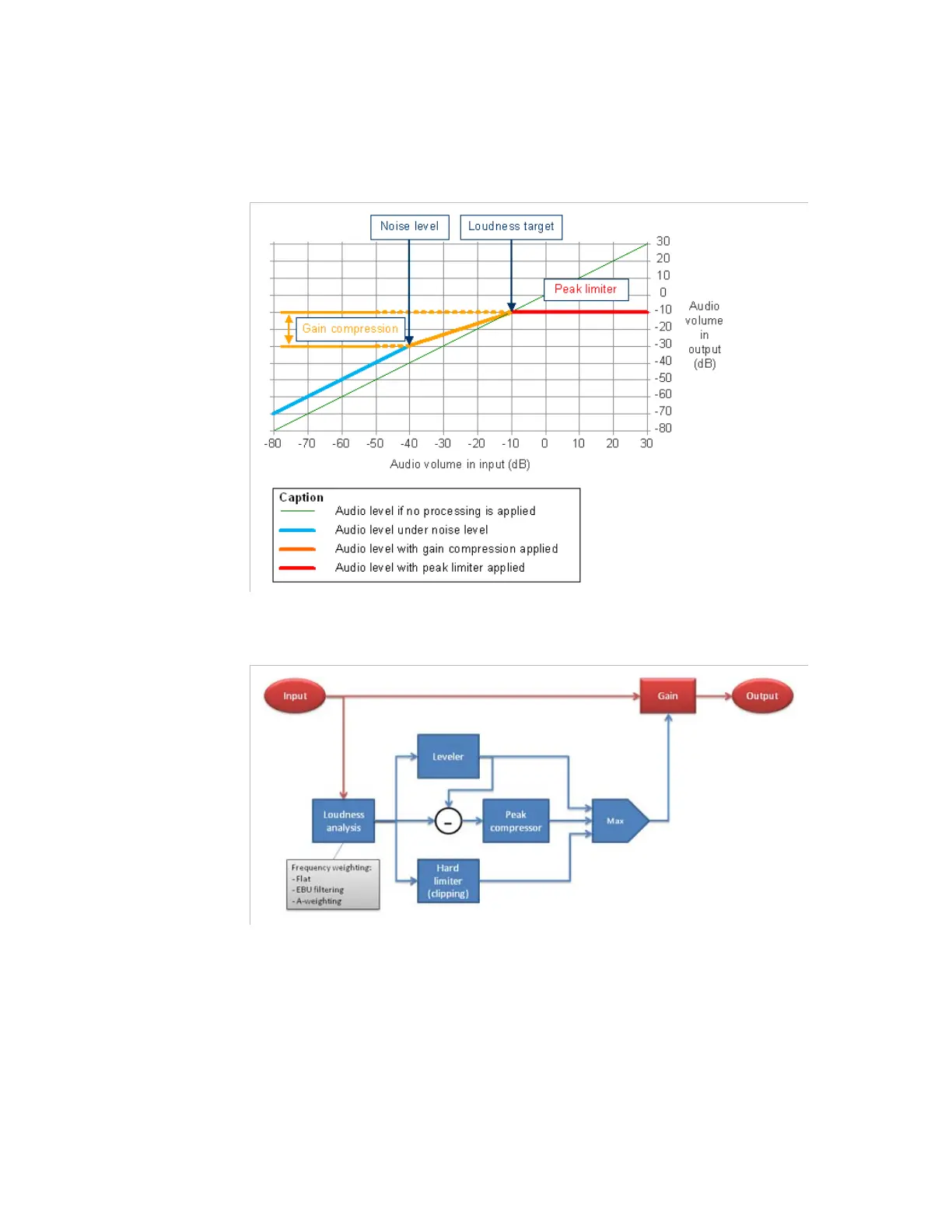

Figure 3-245. Automatic loudness control
Figure 3-246. Automatic loudness control block diagram
The leveler is a limiter (compressor with an infinite ratio) with slow
timing.
The Peak compressor is a compressor with fast timing. It acts on the
peaks that remain in the attack phase of the leveler.
The Hard limiter is a limiter with very fast timing. When enabled, it
removes the remaining loudness peaks after leveling and peak
compressing.
The output stage is equipped with a soft clipper to avoid any hard
digital clipping.
