Harmonic ELECTRA VS - Page 303

Chapter 3 ’Web User Graphical Interface’ — Workflow Library
Electra VS - Version 05.10 303
User Manual - Rev. A

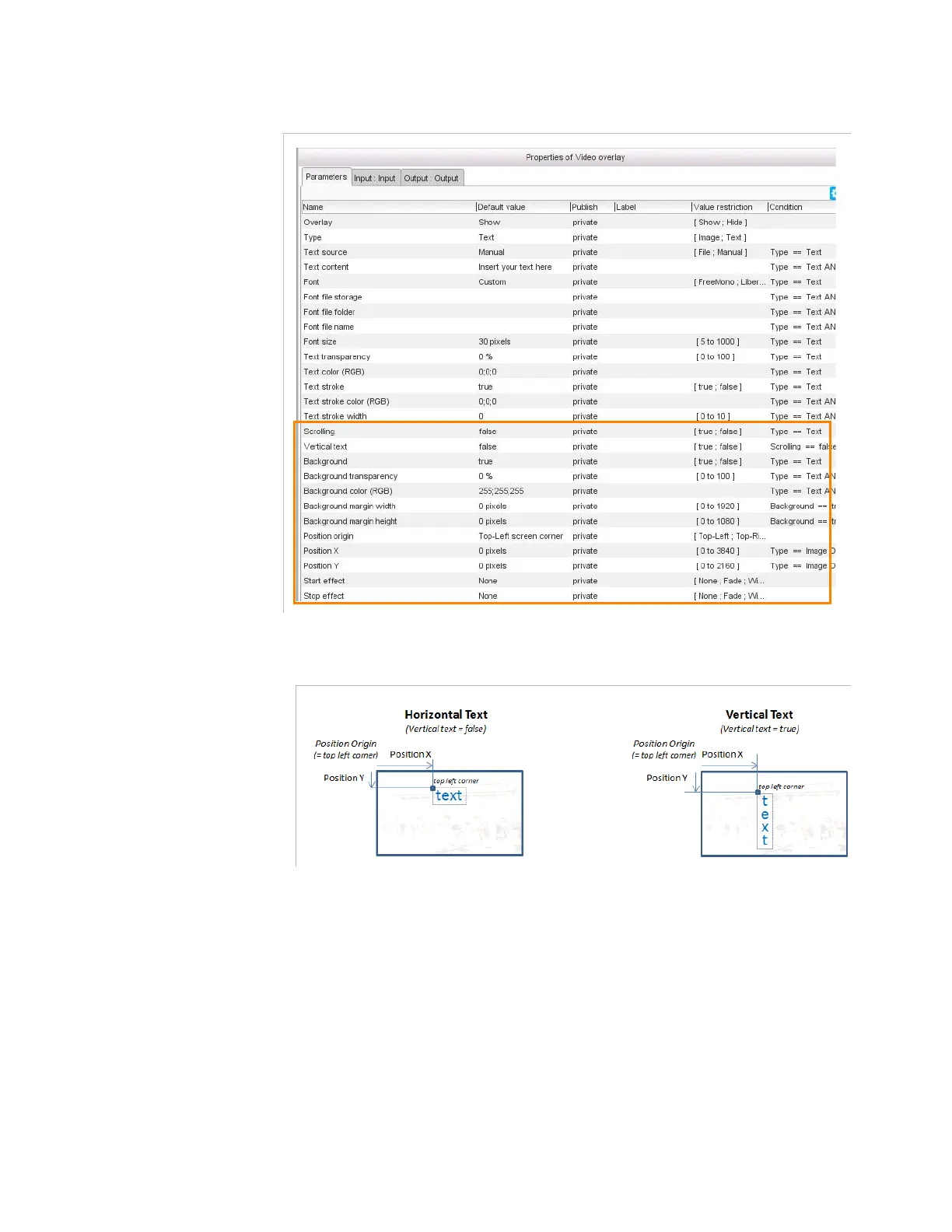

Figure 3-274. Video overlay parameters - Text insertion - Static text
Figure 3-275. Video overlay parameters - Text insertion - Static text
 Vertical text: if set to true , the text will be inserted vertically .
 Background : see above.
 Position origin : the screen corner from which the positions
are defined (
Top-Left screen corner, Top-Right screen corner,
Bottom-Left screen corner, Bottom-Right screen corner
).
 Position X : horizontal position of the beginning of the text box
(in pixels).
 Position Y : vertical position of the beginning of the text box (in
pixels).
