Chapter 7 ’Tools’ — HP Monitoring Tools (6RU and 10RU Devices)
476 Electra VS - Version 05.10
User Manual - Rev. A
2. Select Enclosure Settings and press OK .

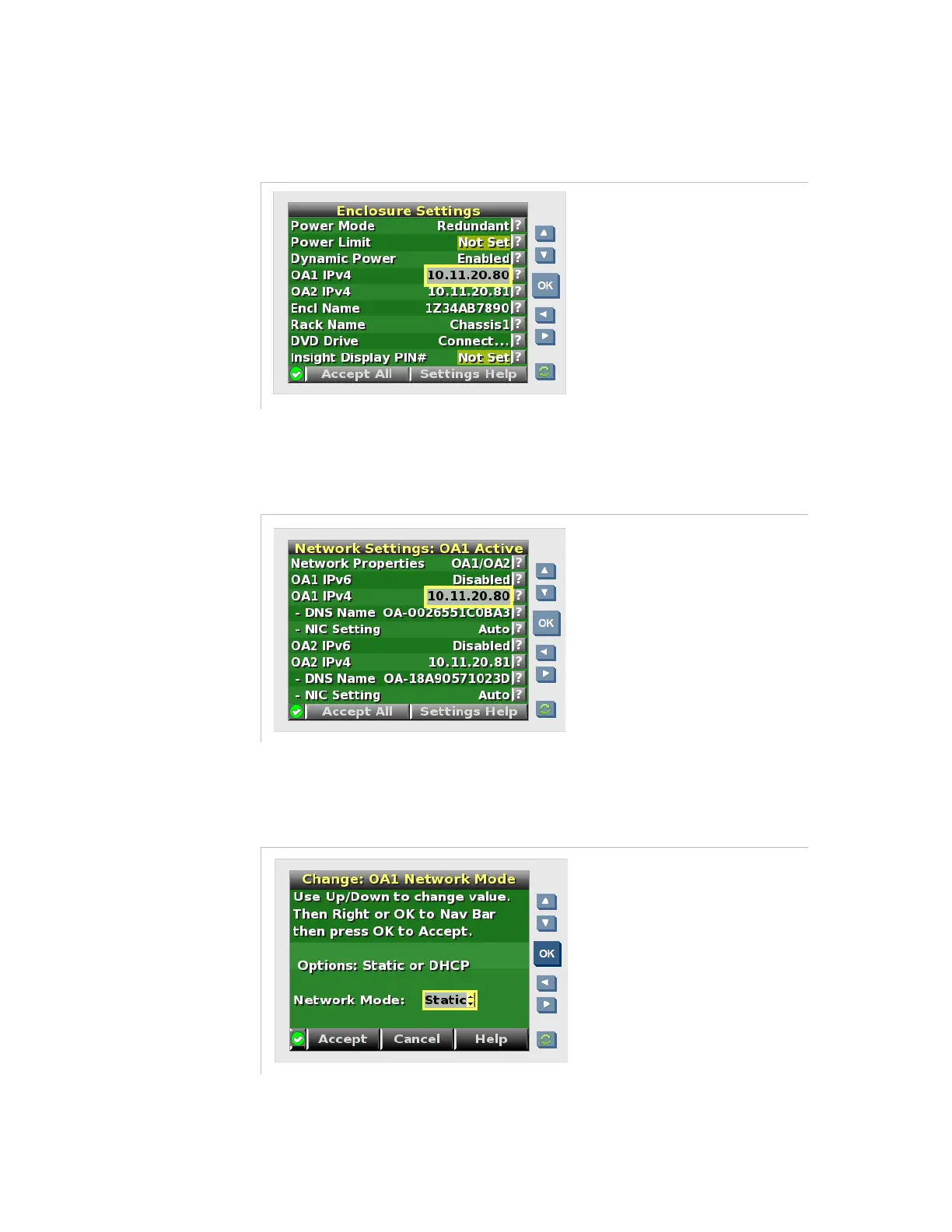

Figure 7-10. Electra VS front panel screen – Enclosure settings
3. Select the OA1 IPv4 field and press OK .
Figure 7-11. Electra VS front panel screen – Onboard Administrator selection
4. Once again, select the OA1 IPv4 field and press OK .
Figure 7-12. Electra VS front panel screen – Onboard Administrator network mode
