Appendix A ’Technical Specifications’ — Hardware Delivery Specifications
508 Electra VS
-
Version 05.10
User Manual - Rev. A
1RU G9 Hardware available configurations
The following 1-RU platforms may be ordered
ELC-VS-1U-2AC-SYS/ELC-VS-1U-2AC-SYS-MONO/
ELC-VS-1U-2AC-PRO/ELC-VS-1U-2AC-PRO-MONO:
Server with 8 IP network connectors

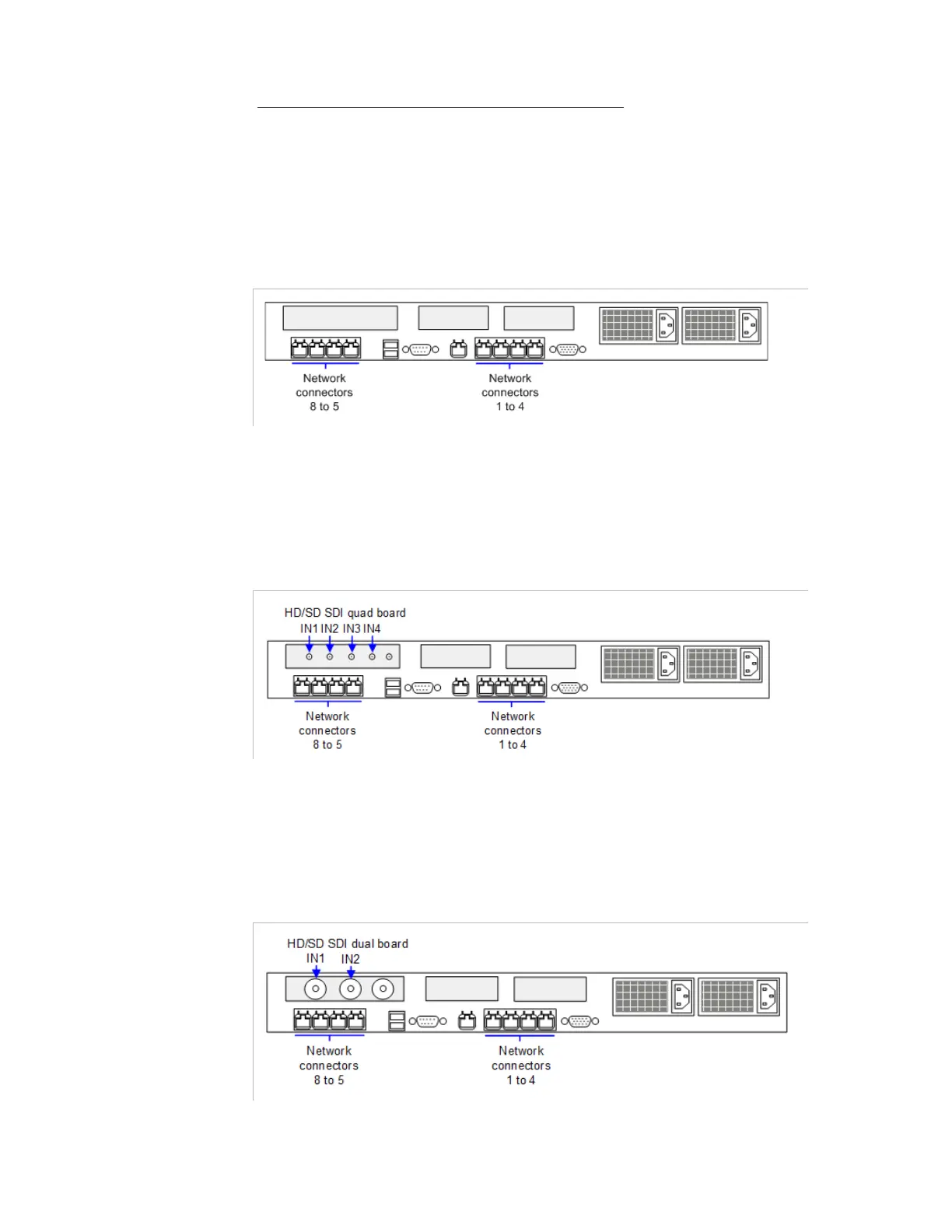

Figure A-6. G9 server with 8 IP network connectors
ELC-VS-1U-2AC-SYS/ELC-VS-1U-2AC-SYS-MONO/
ELC-VS-1U-2AC-PRO/ELC-VS-1U-2AC-PRO-MONO
+ ELC-VS-HW-HDSDI-4:
Server with 8 IP network connectors and 4 SD-SDI/HD-SDI inputs
Figure A-7. G9 server with 8 IP network connectors and 4 SD-SDI/HD-SDI inputs
ELC-VS-1U-2AC-SYS/ELC-VS-1U-2AC-SYS-MONO/
ELC-VS-1U-2AC-PRO/ELC-VS-1U-2AC-PRO-MONO
+ ELC-VS-HW-HDSDI-2:
Server with 8 IP network connectors and 2 SD-SDI/HD-SDI inputs
Figure A-8. G9 server with 8 IP network connectors and 2 SD-SDI/HD-SDI inputs
