Appendix A ’Technical Specifications’ — Hardware Delivery Specifications
510 Electra VS
-
Version 05.10
User Manual - Rev. A
ELC-VS-1U-2AC-SYS/ELC-VS-1U-2AC-PRO + 2*ELC-VS-HW-UHD

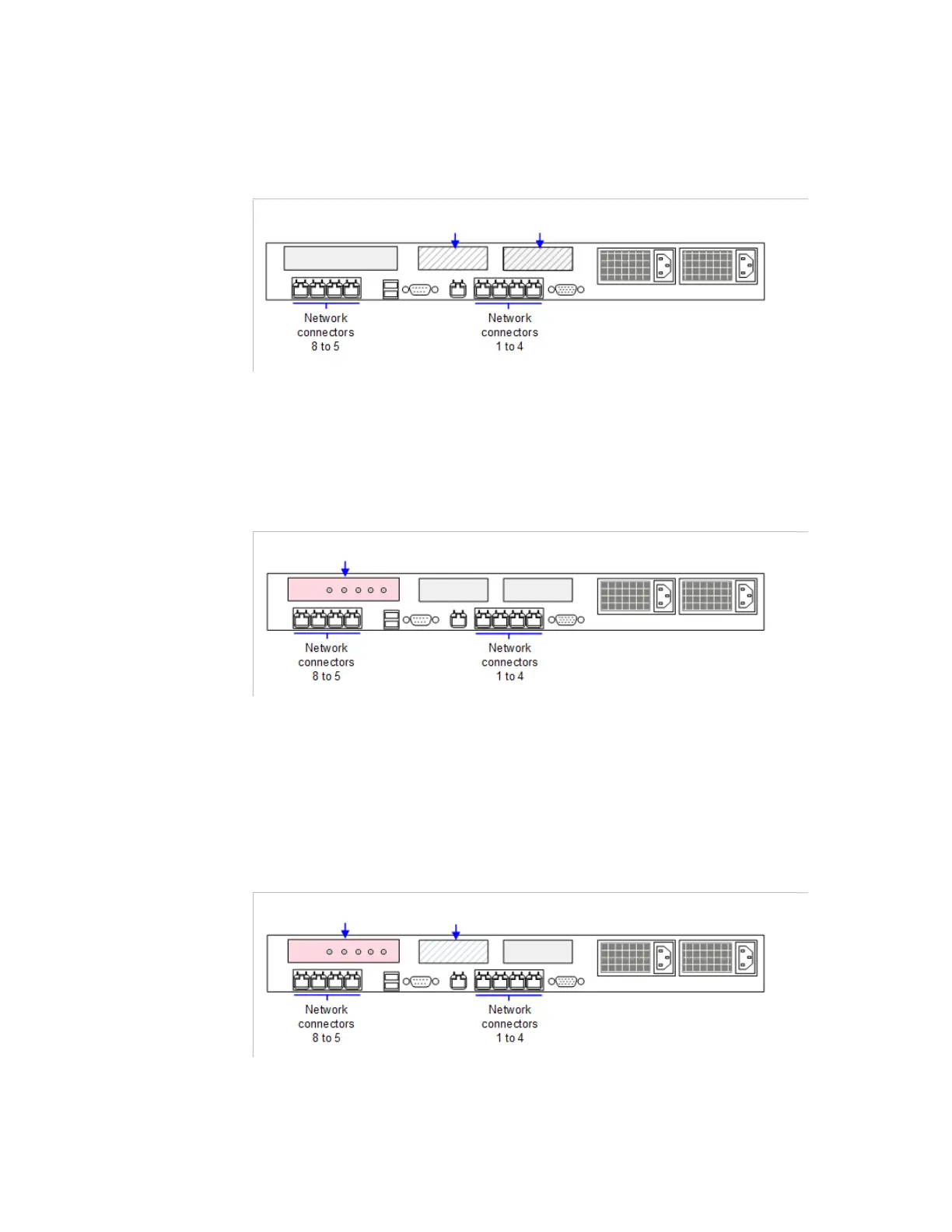

Figure A-12. G9 server with 8 IP network connectors and 2 additional hardware
accelerator board for UHD encoding
ELC-VS-1U-2AC-SYS/ELC-VS-1U-2AC-SYS-MONO/ELC-VS-1U-2AC-PR
O/ELC-VS-1U-2AC-PRO-MONO + ELC-VS-HW-3GSDI-4
Server with 8 IP network connectors and 4 3G-SDI inputs
Figure A-13. G9 server with 8 IP network connectors and 4 3G-SDI inputs
ELC-VS-1U-2AC-SYS/ELC-VS-1U-2AC-SYS-MONO/ELC-VS-1U-2AC-PRO/
ELC-VS-1U-2AC-PRO-MONO + ELC-VS-HW-3GSDI-4 + ELC-VS-HW-UHD
Server with 8 IP network connectors and 4 3G-SDI inputs and additional
hardware accelerator board for UHD encoding
Figure A-14. G9 server with 8 IP network connector, 4 3G-SDI inputs and additional
hardware accelerator board for UHD encoding
3G-SDI quad board UHD accelerator board
