Internal Shift Tray SH3040 (D388)
D086/D087 2-54 SM
3. Remove the inner cover [B] ( x 1).

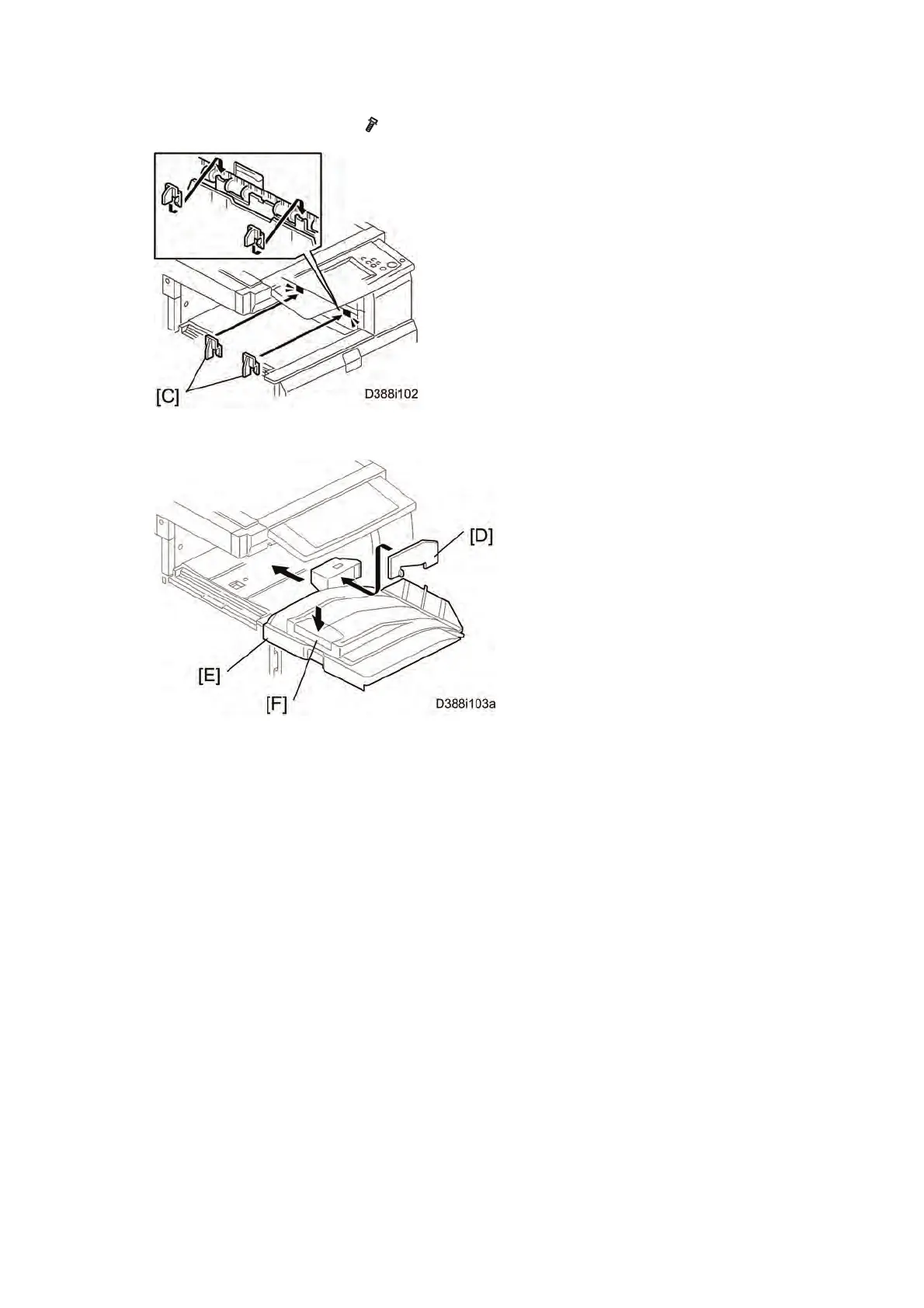

4. Install the small paper guides [C].
5. Attach the connector cover [D] to the shift tray unit [E].
6. Install the shift tray unit [E] to the machine.
7. Push down the left edge [F] of the shift tray.
8. Turn on the main power switch of the machine.
9. Check the shift tray unit operation.
