Ricoh Aficio MP C3501

Exterior Covers
SM 4-19 D086/D087
Replacement
and
Adjustment
4.4.4 REAR COVER

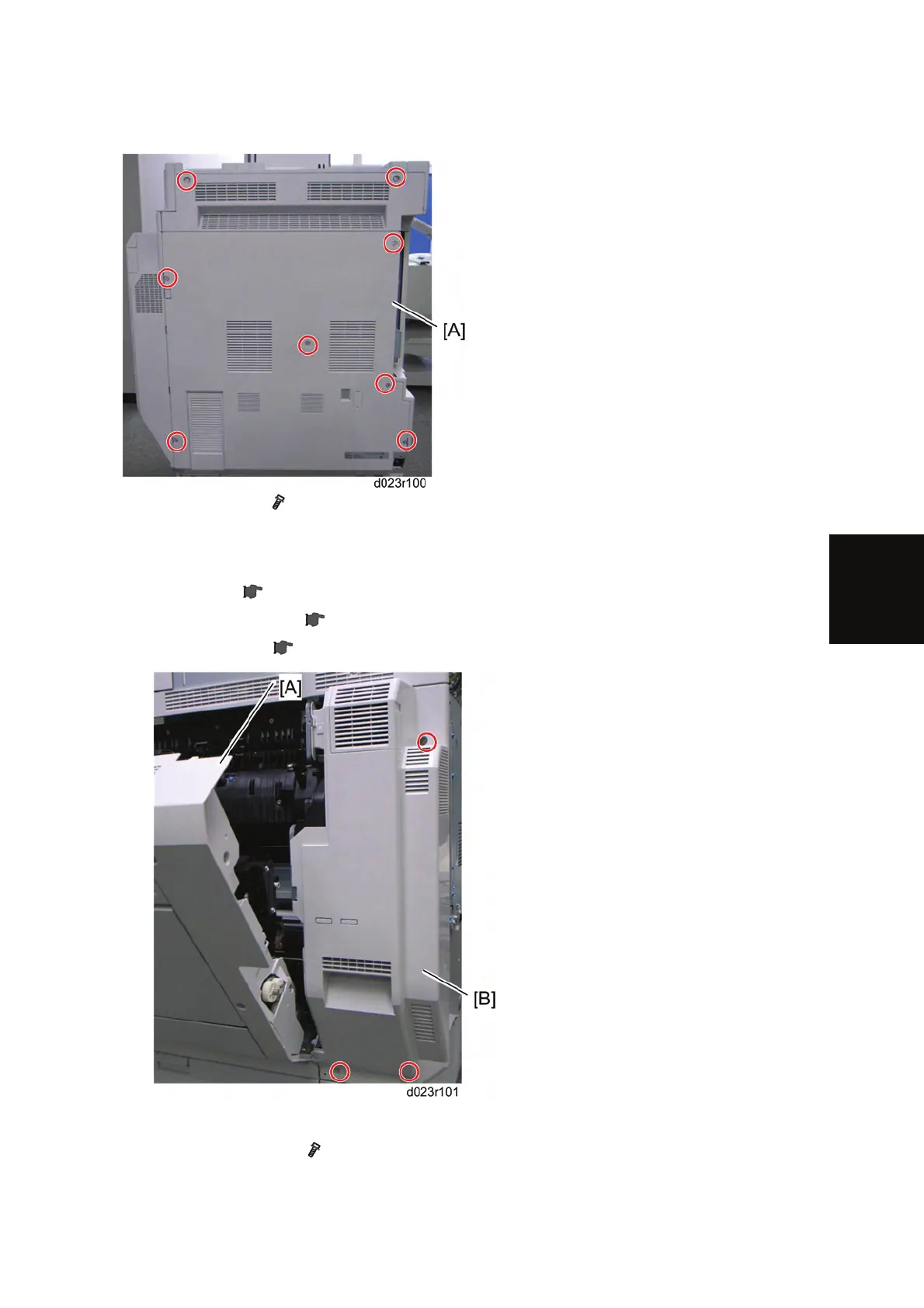

1. Rear cover [A] (
x 8)
4.4.5 RIGHT REAR COVER
1. Rear cover ( p.4-19)
2. Scanner right cover (
p.4-22 "Ozone Filter and Dust Filter")
3. Right top cover (
p.4-22 "Ozone Filter and Dust Filter")
4. Open the right door [A].
5. Right rear cover [B] (
x 3)
