JUNCTION GATES
B408 16 SM
4.5 JUNCTION GATES

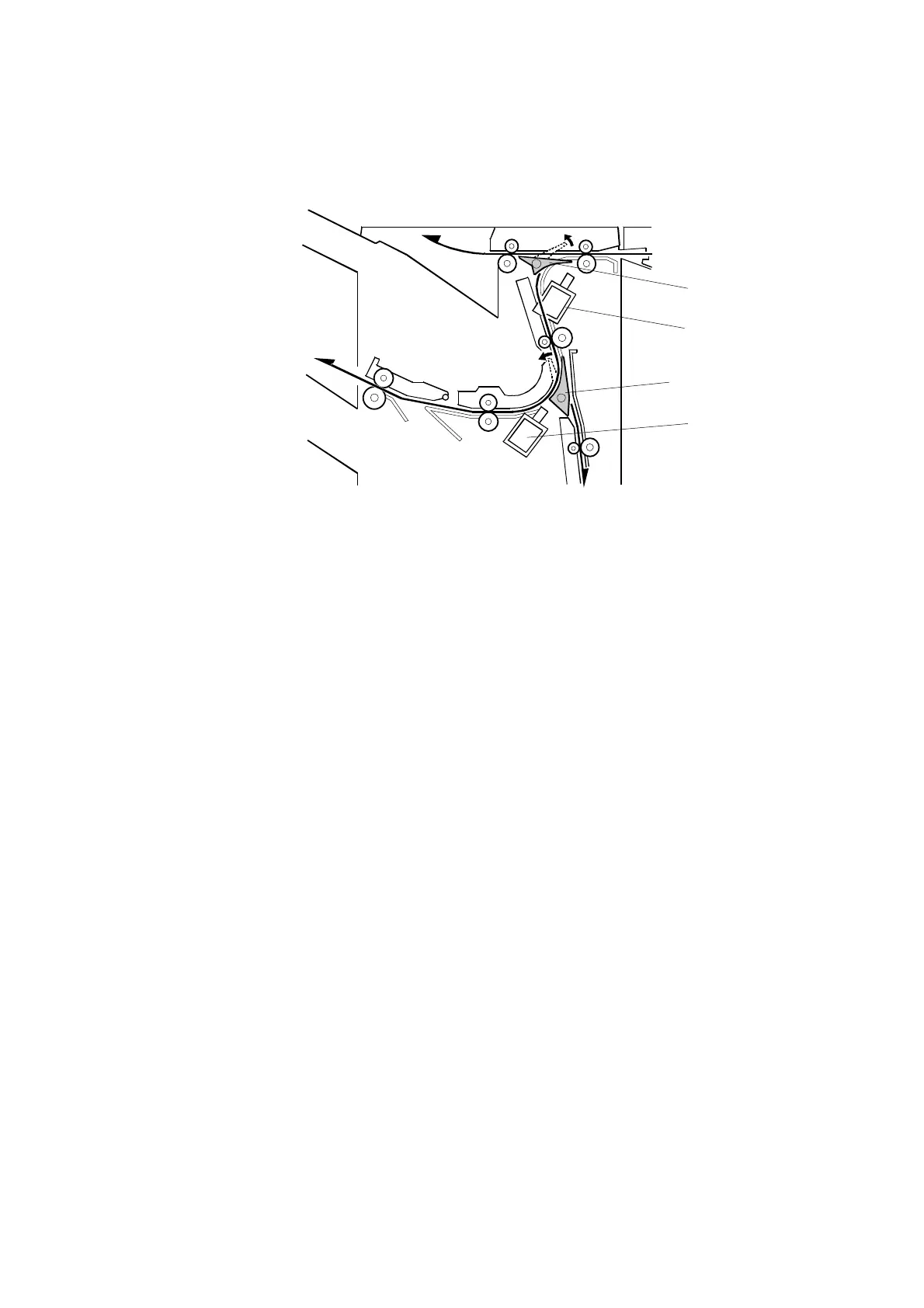

Depending on the finishing mode, the copies are directed up, straight through, or
down by the combination of the tray junction gate [A] and stapler junction gate [B].
These gates are controlled by the tray junction gate solenoid [C] and stapler
junction gate solenoid [D].
Upper Tray Mode
The tray junction gate solenoid remains off. The copies go up to the upper tray.
Sort/Stack Mode
The tray junction gate solenoid turns on and the stapler junction gate solenoid
remains off. The copies are sent to the lower tray directly.
Staple Mode
The tray junction gate solenoid and the stapler junction gate solenoid both turn on.
The copies go down to the jogger unit.
B408D108.WMF
[A]
[B]
[C]
[D]

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
