4.11.8 PRESSURE ROLLER AND PRESSURE ROLLER BEARING

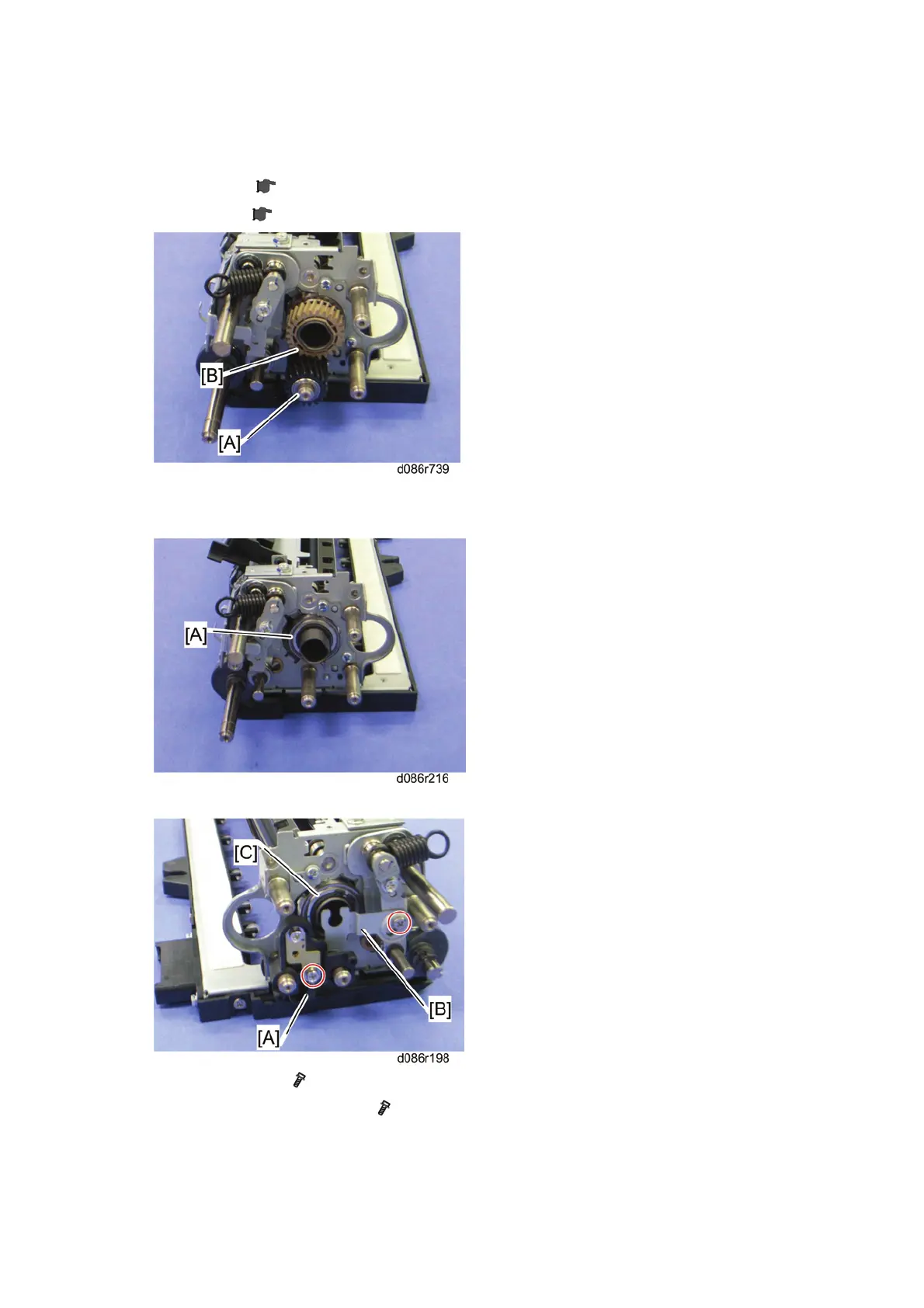

1. Heating roller( p.4-103)
2. Fusing lamp (
p.4-110)
3. One-way clutch gear [A]
4. Pressure roller gear [B] at the rear side
5. Pressure roller bearing [A] at the rear side (C-ring x 1)
6. Front terminal [A] (
x 1)
7. Lamp holder front bracket [B] (
x 1)
8. Pressure roller bearing [C] at the front side (C-ring x 1)
