Ricoh Aficio MP C3501 Service Manual

Controller Options
D086/D087 2-106 SM
7. Follow the messages shown on the operation panel.
8. Turn the main switch off.
9. Remove the SD card from SD Card Slot 2.
10. Turn the main switch on.
11. Check that the application programs run normally.
12. Make sure that the machine can recognize the option (see ‘Check All Connections’ at the
end of this section).
2.26.3 POSTSCRIPT3 UNIT TYPE C5501
The PostScript3 application and fonts cannot be moved to another SD card. However,
other applications can be moved onto the PostScript3 SD card.
 Unplug the main machine power cord before you do the following procedure.

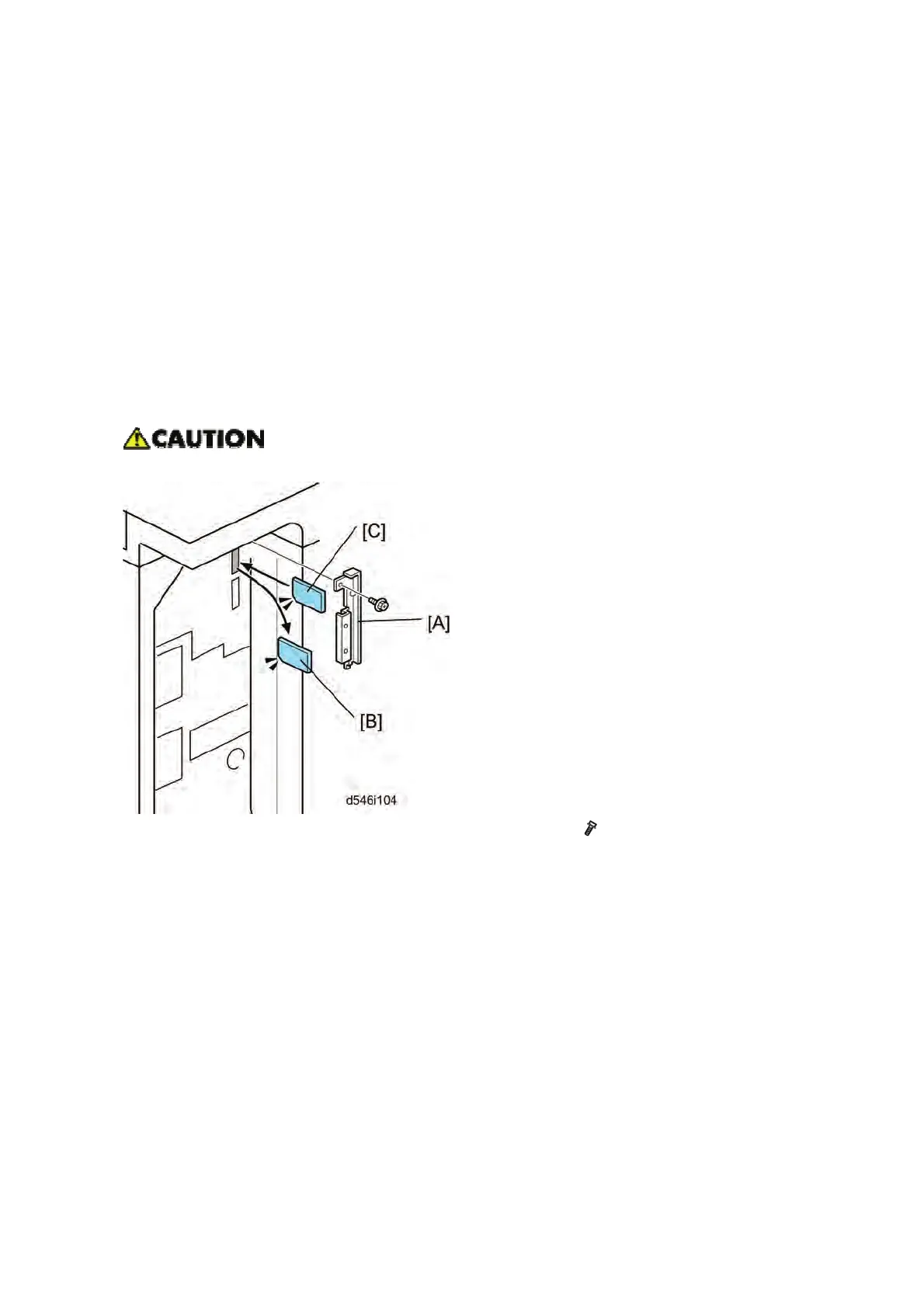

1. Remove the SD-card slot cover [A] from the SD card slots (
x 1).
2. Move the SD card (security applications) [B] from SD slot 1 to SD slot 2.
 If the VM card is already in SD slot 2, first remove the VM card in SD slot 2.
3. Insert the SD card [C] (PostScript 3) in SD slot 1 with its label face towards the front of
the machine. Then push it slowly into SD slot 1 until you hear a click.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
