Ricoh Aficio MP C3501 Service Manual

1000-Sheet
Finisher
B408
ELECTRICAL COMPONENT LAYOUT
SM 11 B408

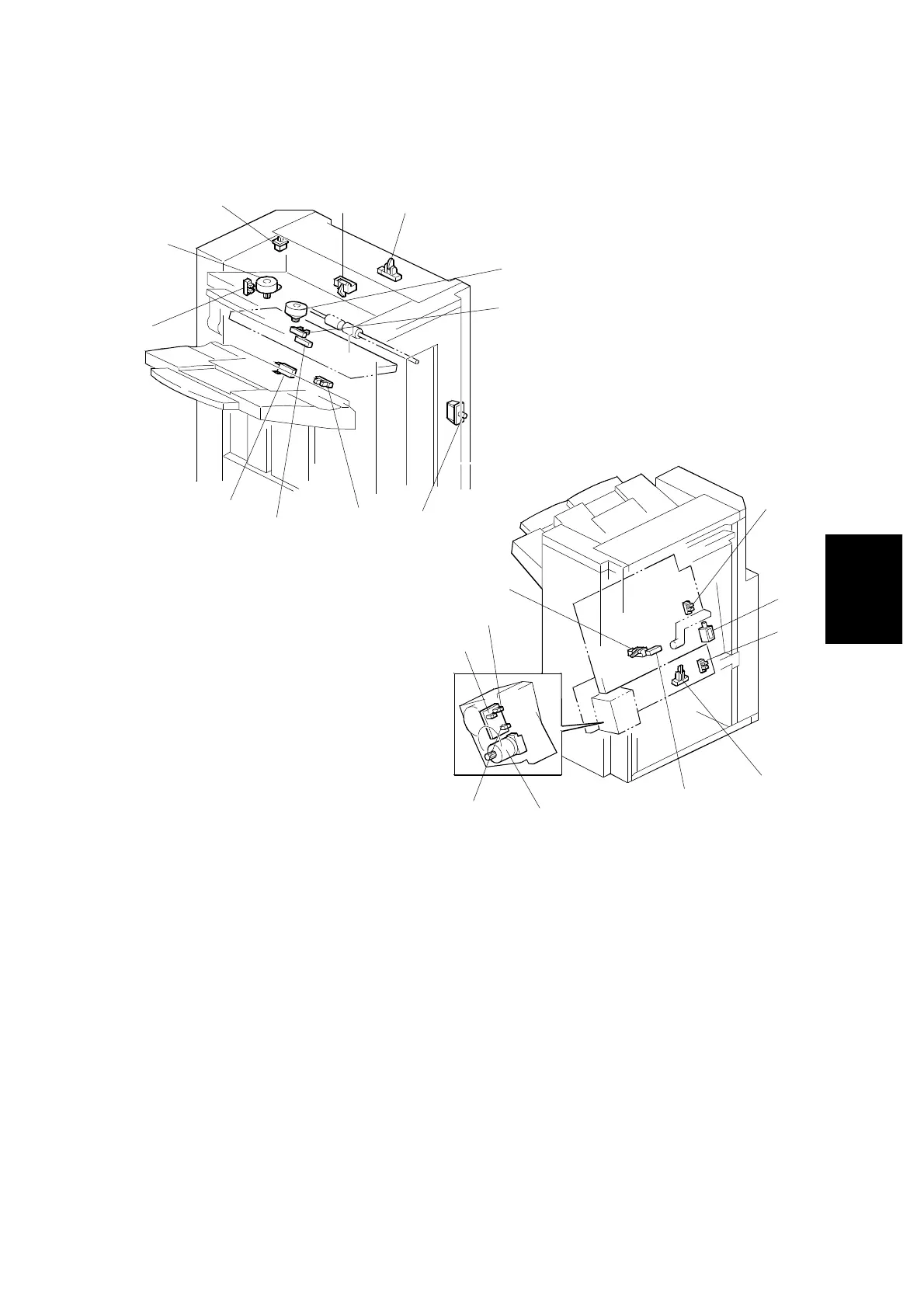

4.2 ELECTRICAL COMPONENT LAYOUT
1. Upper Cover Switch
2. Paper Limit Sensor
3. Entrance Sensor
4. Exit Guide Plate Motor
5. Exit Guide Plate HP Sensor
6. Front Door Safety Switch
7. Stack Height Sensor
8. Lower Tray Exit Sensor
9. Lower Tray Upper Limit Switch
10. Shift HP Sensor
11. Shift Motor
12. Jogger Fence HP Sensor
13. Positioning Roller Solenoid
14. Stapler HP Sensor
15. Stapler Tray Entrance Sensor
16. Stapler Tray Paper Sensor
17. Stapler Hammer Motor
18. Staple Sheet Sensor
19. Stack Feed-out Belt HP Sensor
20. Stapler Rotation HP Sensor
21. Staple Sensor
B408D102.WMF
B408D103.WMF
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
