Ricoh Aficio MP C3501

Drive Unit
D086/D087 4-100 SM

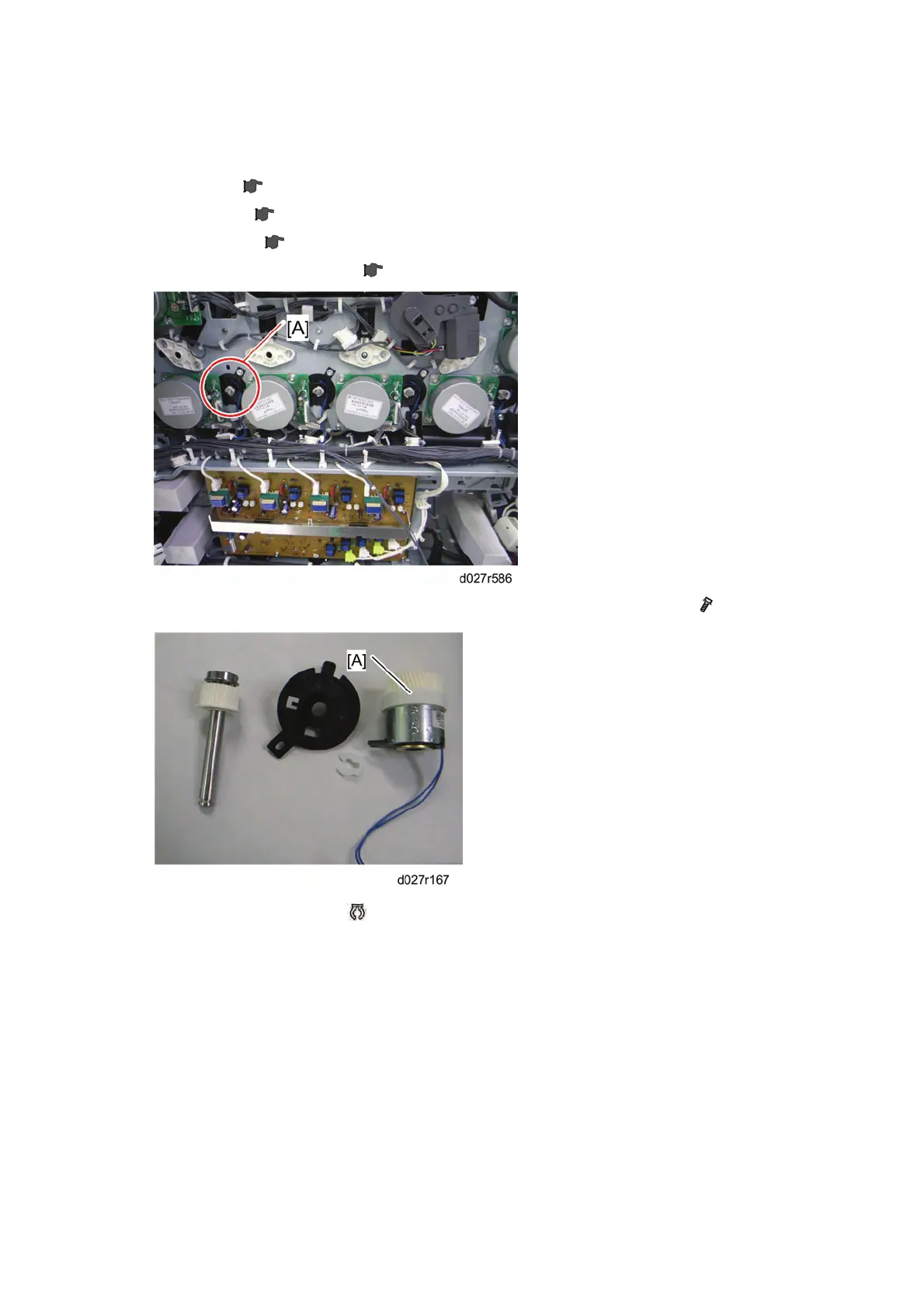

4.10.18 DEVELOPMENT CLUTCH-K
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Controller box (
p.4-153 "Controller Box")
4. Drum/development motor-K (
p.4-84)
5. Turn the development clutch unit [A] counter-clockwise and then pull it out ( x 1).
6. Development clutch-K [A] (
x 1)
