Ricoh Aficio MP C3501

Drive Unit
SM 4-91 D086/D087
Replacement
and
Adjustment

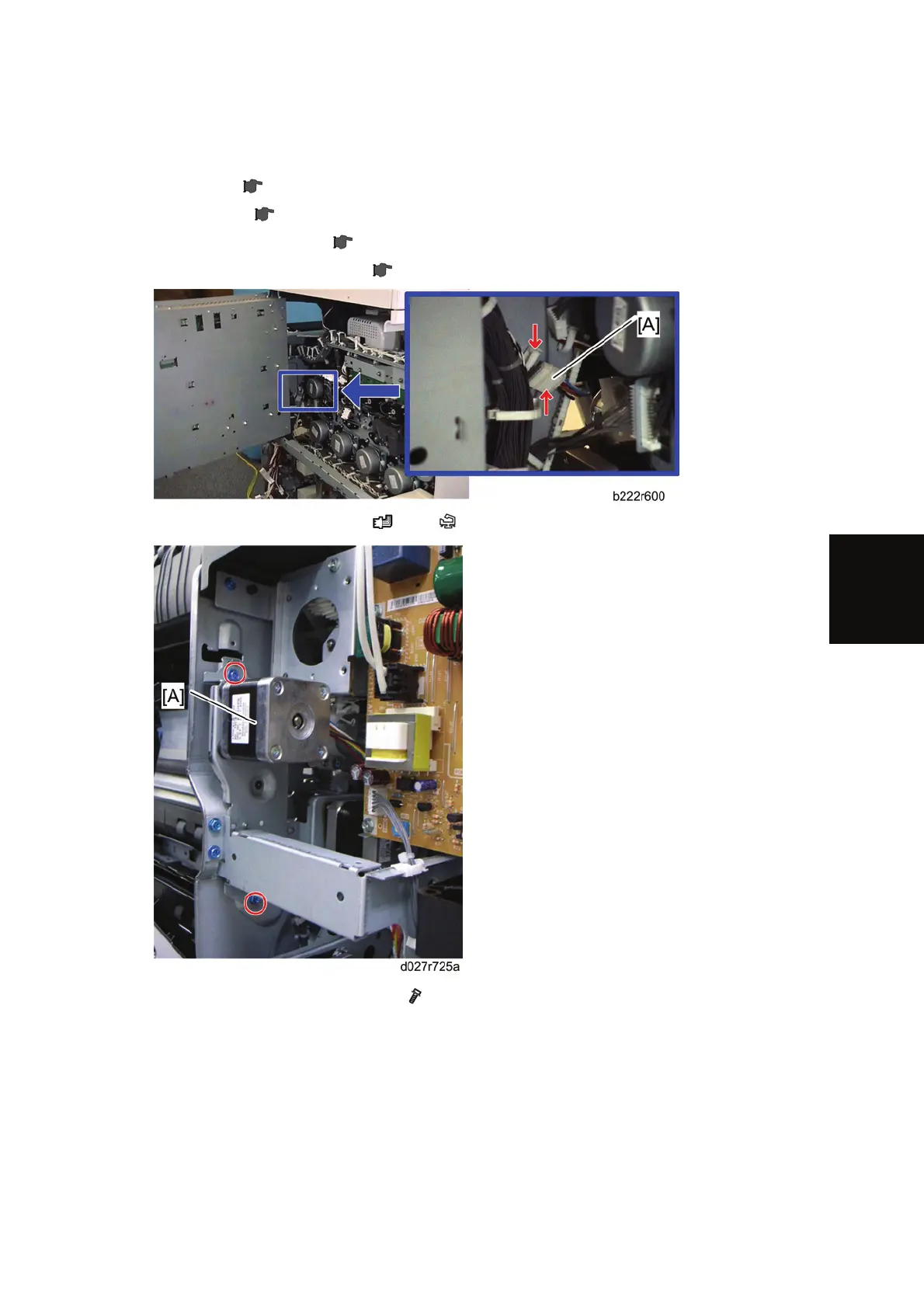

4.10.11 DUPLEX/BY-PASS MOTOR
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Open the controller box (
p.4-153 "Controller Box").
4. Pressure roller contact motor (
p.4-88)
5. Disconnect the connector [A] (
x 1, x 1)
6. Duplex/by-pass motor bracket [A] (
x 2)
