Ricoh Aficio MP C3501

Drive Unit
D086/D087 4-90 SM
4.10.10 PRESSURE ROLLER CONTACT MOTOR
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Open the controller box (
p.4-153 "Controller Box").

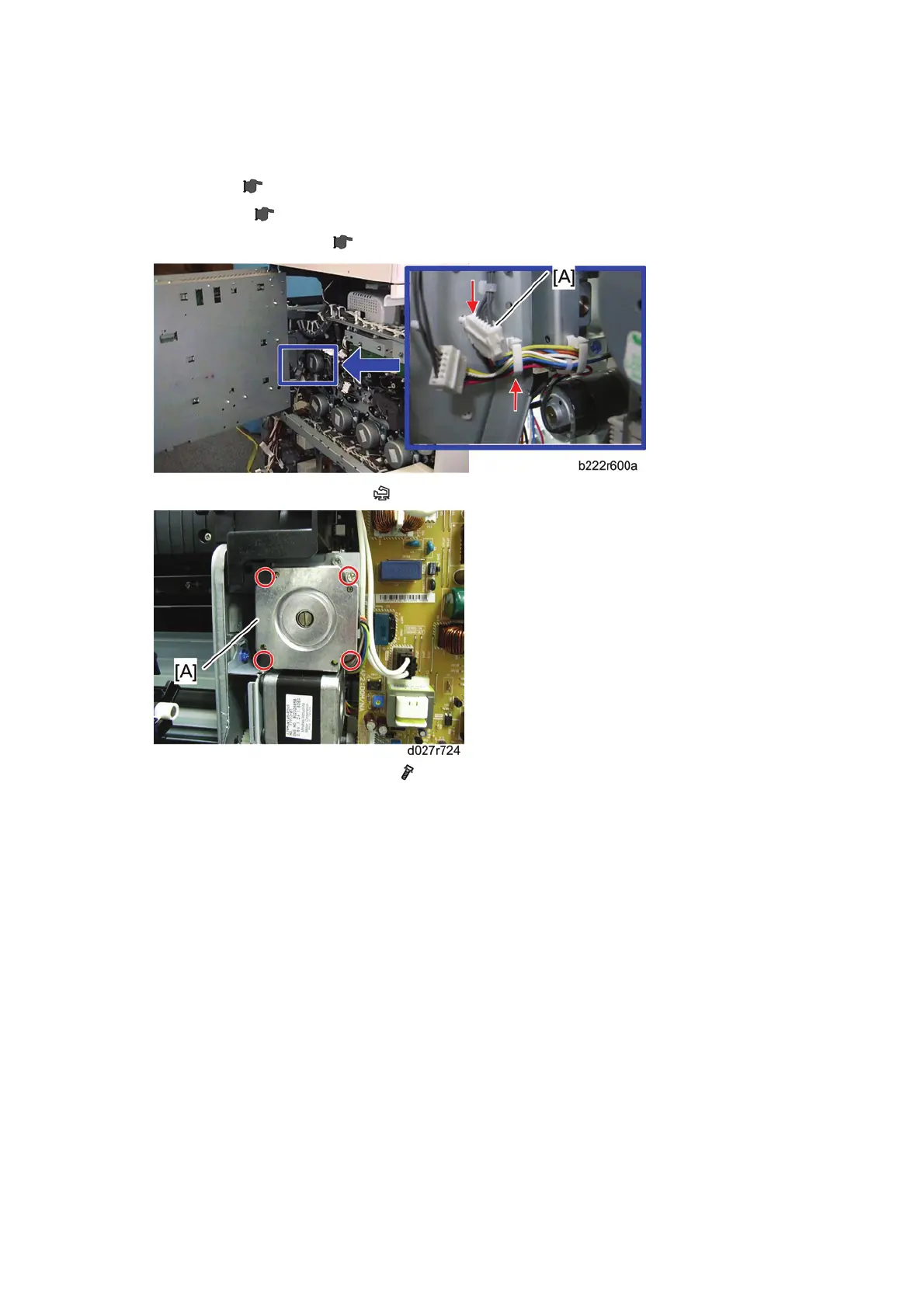

4. Disconnect the connector [A] (
x 1).
5. Pressure roller contact motor [A] (
x 4)
