Electrical Components
SM 3 D537
Paper Feed
Unit PB3100
D537

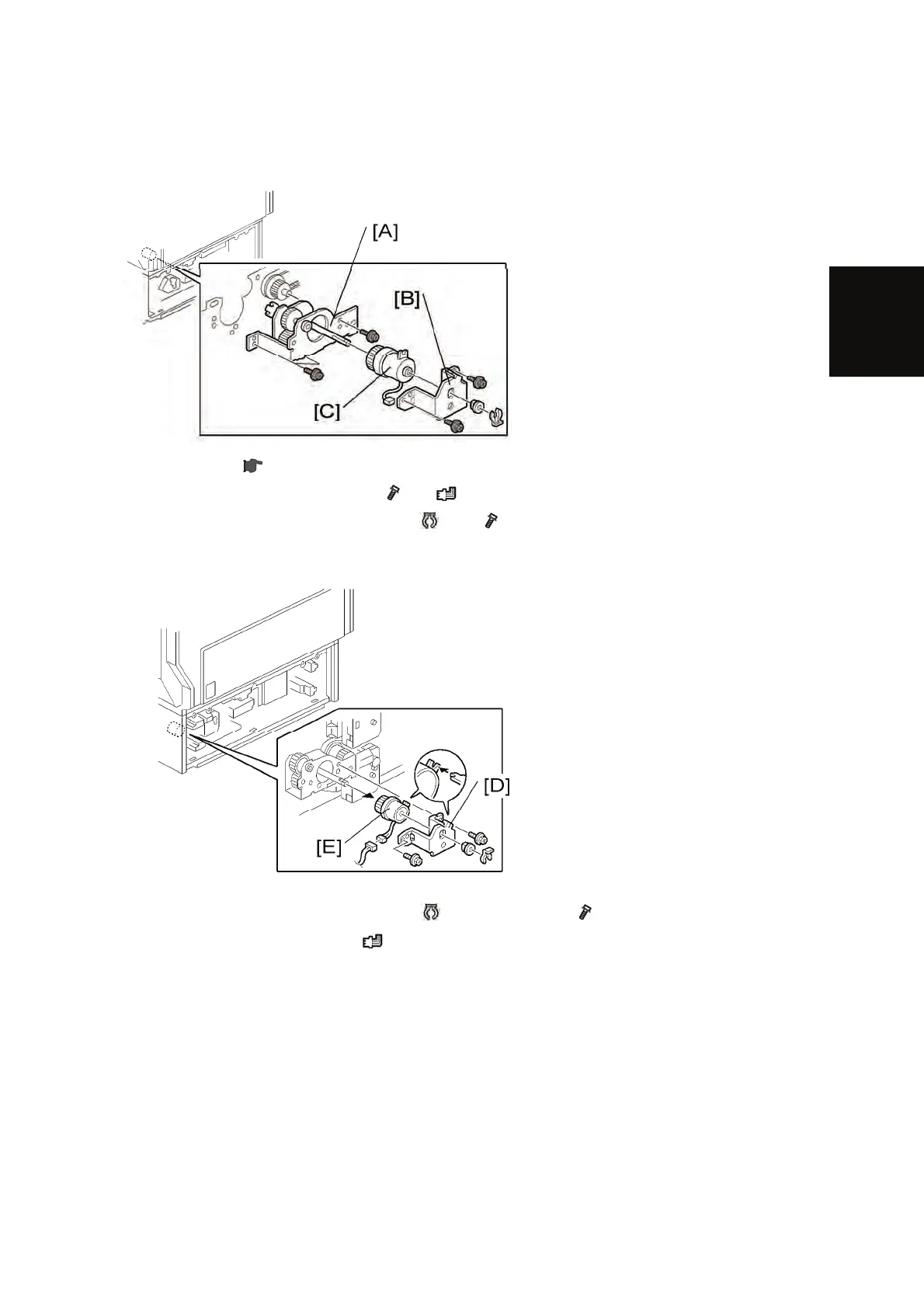

1.2.2 UPPER AND LOWER PAPER FEED CLUTCHES
1. Rear cover (
"Rear Cover")
2. Upper paper feed gear unit [A] (
x 3, x 1)
3. Upper paper feed clutch bracket [B] (
x 1, x 2, bushing x 1)
4. Upper paper feed clutch [C]
5. Lower paper feed clutch bracket [D] (
x 1, bushing x 1, x 2)
6. Lower paper feed clutch [E] (
x 1)
