Ricoh Aficio MP C3501

Image Transfer
SM 4-65 D086/D087
Replacement
and
Adjustment
4.8 IMAGE TRANSFER
4.8.1 IMAGE TRANSFER BELT UNIT
1. Open the right door.
2. Open the front door.
3. Open the drum positioning plate. (
p.4-49 "PCDU")

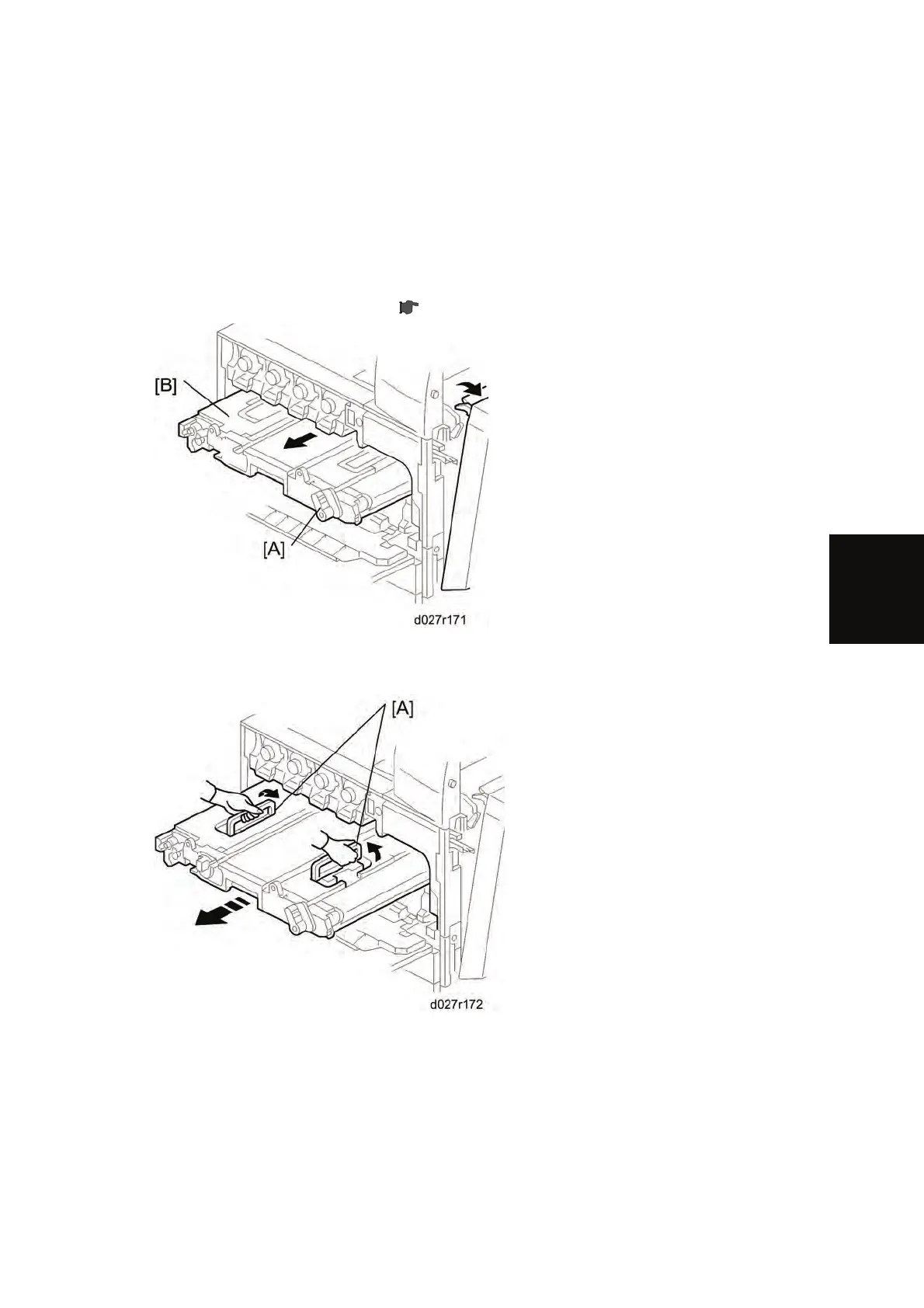

4. Turn the image transfer belt unit lock lever [A] counterclockwise.
5. Pull out the image transfer belt unit [B] halfway.
6. Grasp the handles [A], and then pull out the image transfer belt unit fully.
