Anti-Condensation Heater (Scanner)
SM 2-91 D086/D087
Installation
2.24 ANTI-CONDENSATION HEATER (SCANNER)
This option is provided as a service part.
2.24.1 INSTALLATION PROCEDURE
1. Rear cover (
p.4-19 in the "Replacement and Adjustment" section)
2. Open the ARDF or platen cover.

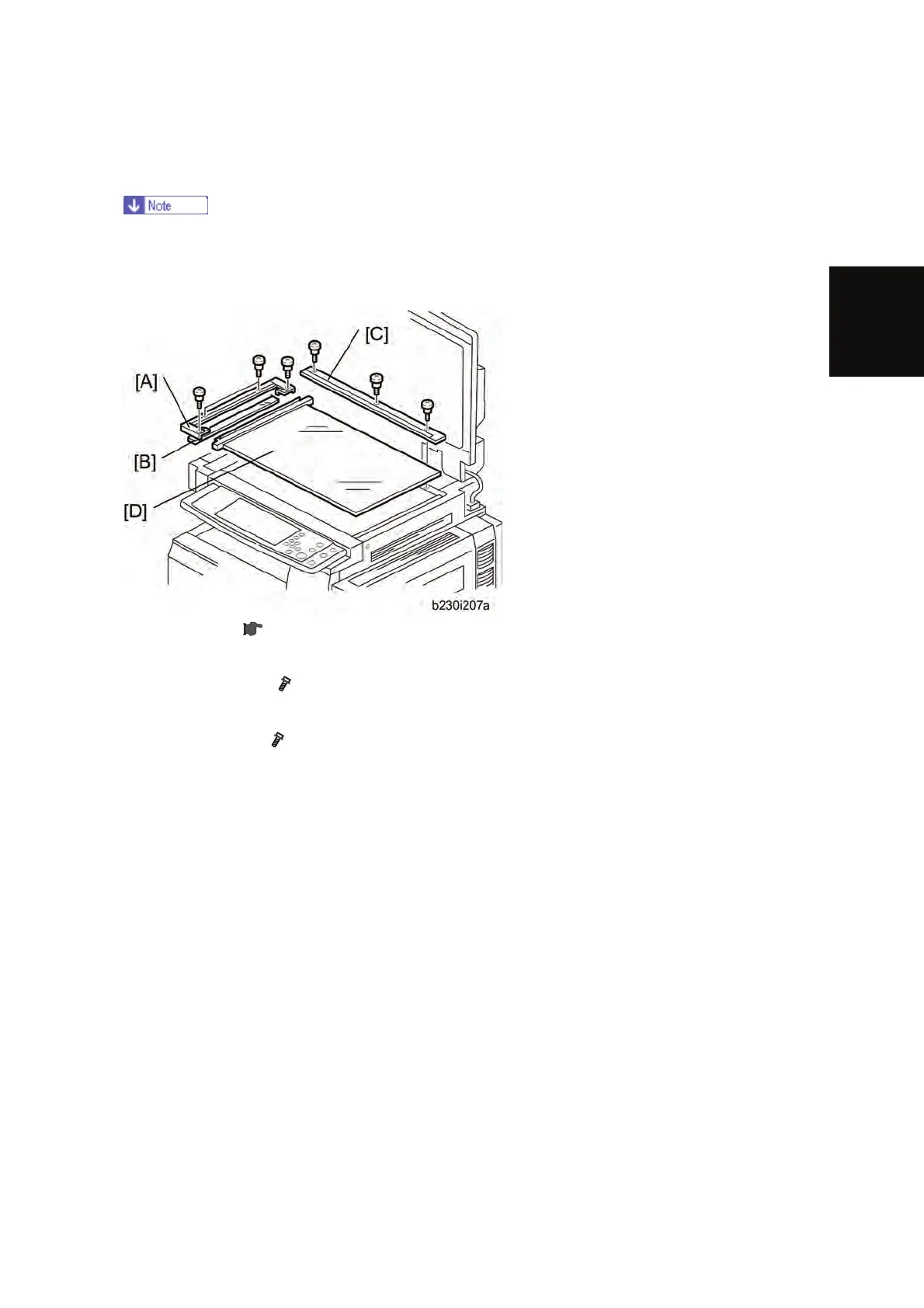

3. Glass cover [A] (
x 4)
4. ARDF exposure glass [B]
5. Rear scale [C] (
x 3)
6. Exposure glass with left scale [D]
To Next Page
