Ricoh Aficio MP C3501 Service Manual

Drive Unit
SM 4-87 D086/D087
Replacement
and
Adjustment

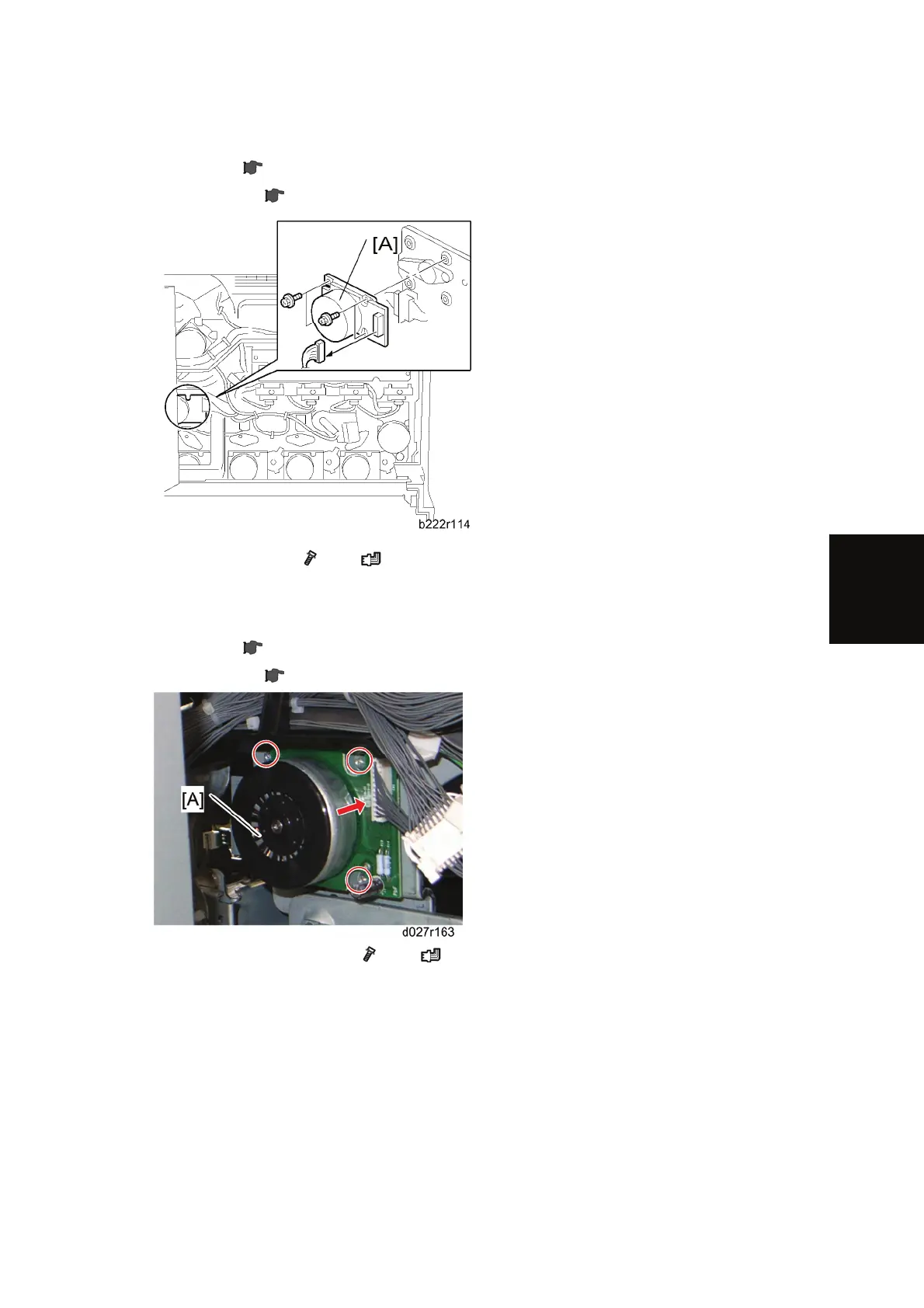

4.10.6 ITB DRIVE MOTOR
1. Rear cover ( p.4-19)
2. Controller box (
p.4-153 "Controller Box")
3. ITB drive motor [A] (
x 4, x 1)
4.10.7 FUSING/PAPER EXIT MOTOR
1. Rear cover ( p.4-19)
2. Controller box (
p.4-153 "Controller Box")
3. Fusing/paper exit motor [A] (
x 3, x 1)
