Ricoh Aficio MP C3501 Service Manual

Fusing
D086/D087 4-110 SM

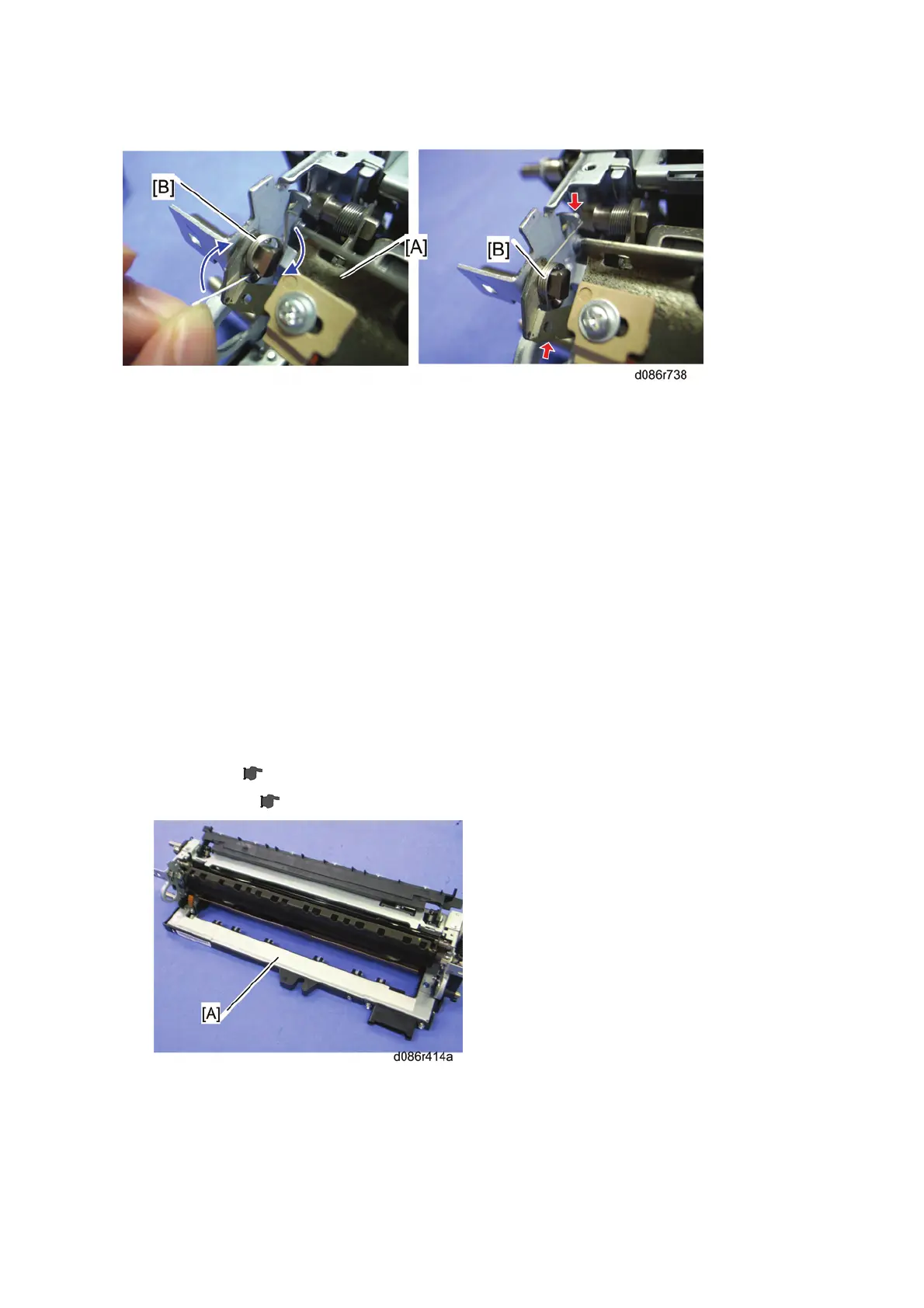

Heating Roller Stripper Plate Installation
The heating roller stripper plate may come off the fusing unit frame after removing the heating
roller.
When reinstalling the heating roller stripper plate:
1. Set the heating roller stripper plate [A] on the fusing frame first.
2. Attach the springs [B] (front and rear) correctly as shown above.
3. Turn the springs as shown above so that the springs hook the fusing unit frame and
heating roller stripper plate.
4. Hold the heating roller stripper plate, and then install the heating roller.
 The heating roller stripper plate is not supported before installing the heating roller in
the fusing unit frame. If you stop holding, the heating roller stripper plate can fall
down.
4.11.6 FUSING CLEANING FELT
1. Fusing unit ( p.4-99)
2. Heating roller (
p.4-103)
3. Remove the fusing cleaning felt [A].

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
