Finisher SR3050 (D372)
D086/D087 2-64 SM
2.16.2 INSTALLATION PROCEDURE
Unplug the main machine power cord before starting the following procedure.
Before you install the 500-sheet finisher, the optional bridge unit (D386) must be
installed.

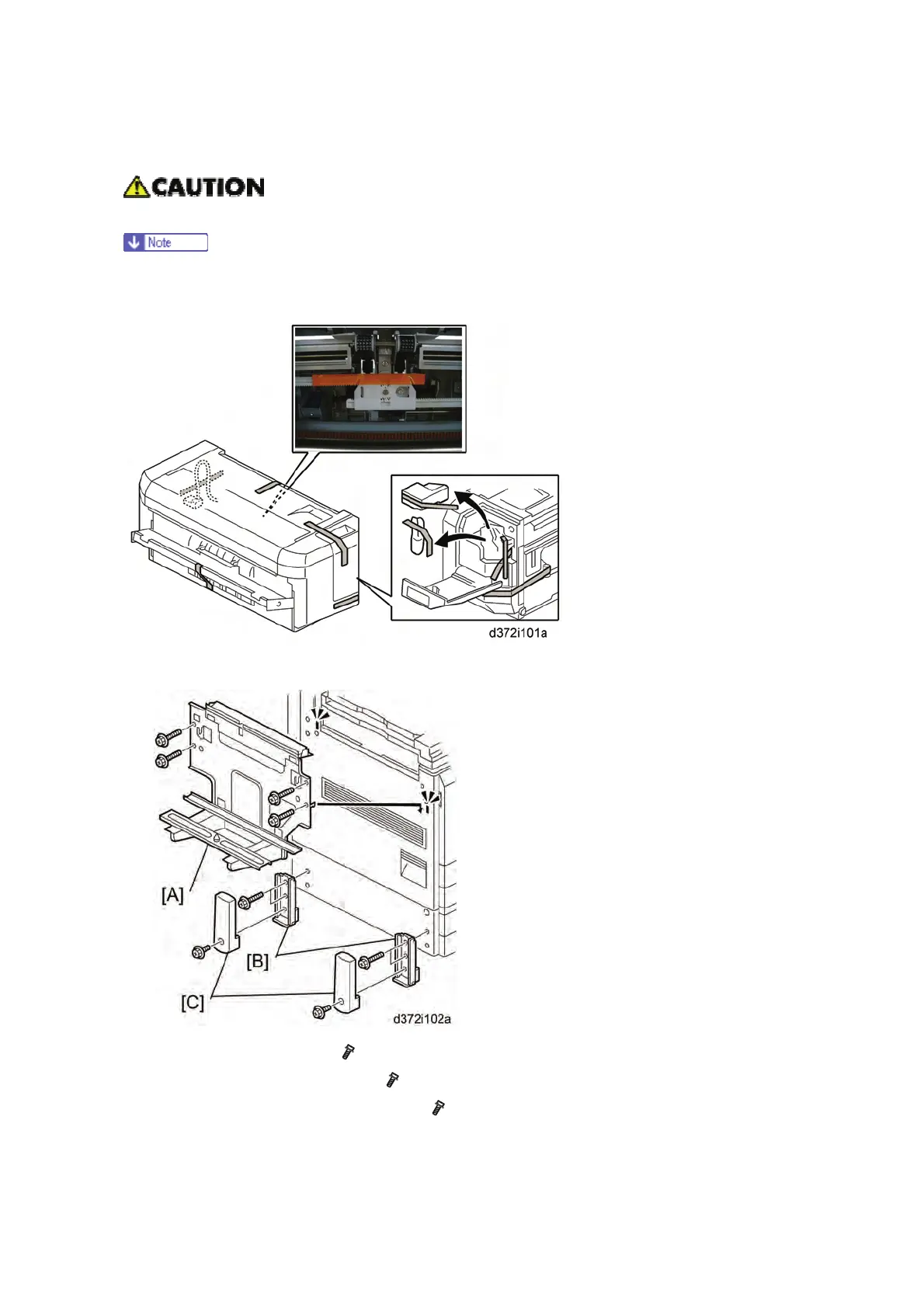

1. Unpack the finisher and remove the tapes.
2. Install the unit holder [A] (
x 3 - M4 x 14).
3. Install the support brackets [B] (
x 2 each: M4 x 20)
4. Install the support bracket covers [C] (
x 1 each: M3 x 8)
