Ricoh Aficio MP C3501 Service Manual

Drive Unit
SM 4-99 D086/D087
Replacement
and
Adjustment
8. Development clutch-Y [B] ( x 1)

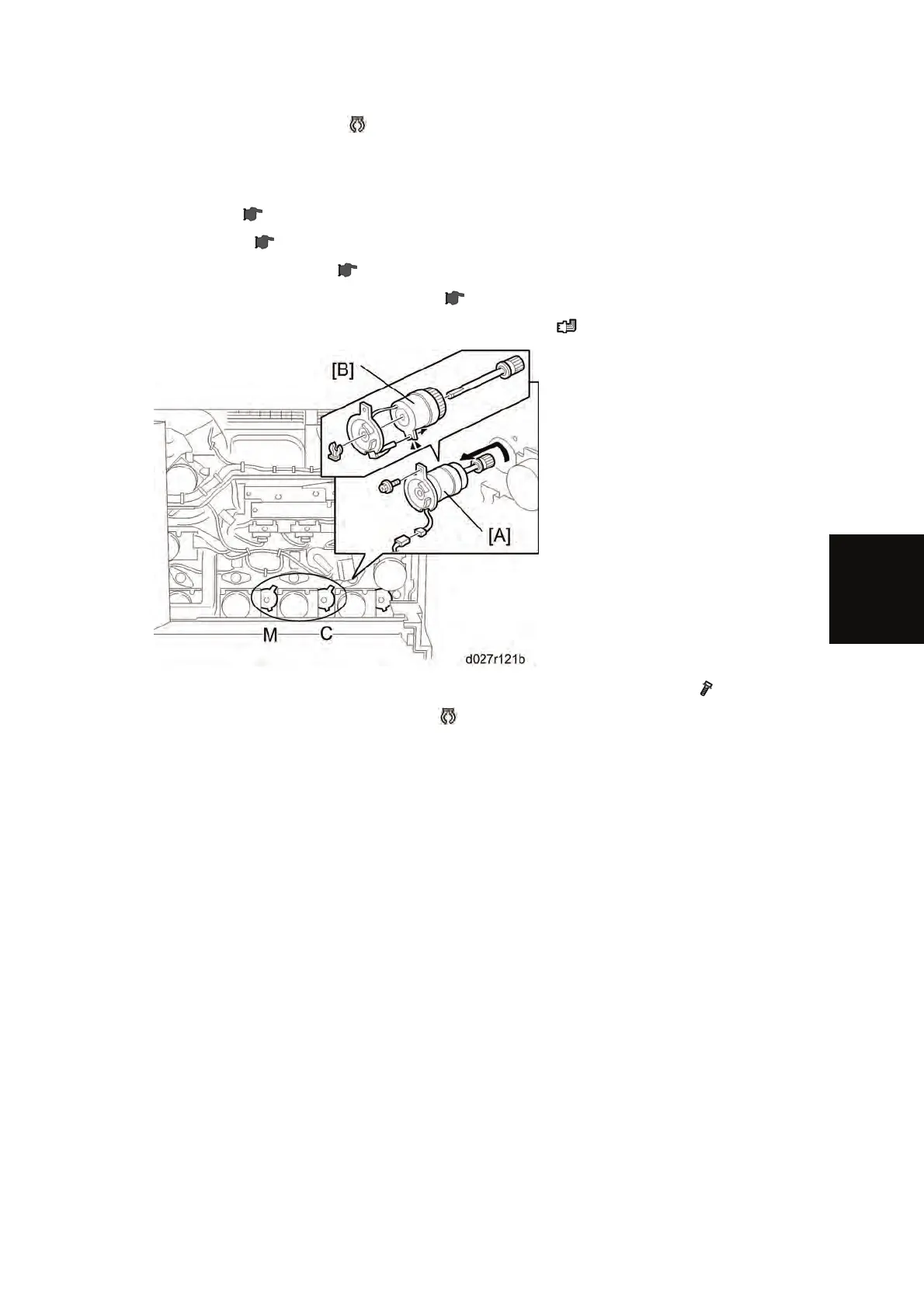

4.10.17 DEVELOPMENT CLUTCHES FOR M AND C
1. Rear cover ( p.4-19)
2. PSU bracket (
p.4-158 "PSU")
3. Open the controller box. (
p.4-153 "Controller Box").
4. Drum/development motors for M and C (
p.4-84)
5. Disconnect the connector for each development clutch (
x 1).
6. Turn the development clutch unit [A] counter-clockwise and then pull it out (
x 1).
7. Development clutches for M and C [B] (
x 1)
