Paper Feed
SM 4-141 D086/D087
Replacement
and
Adjustment

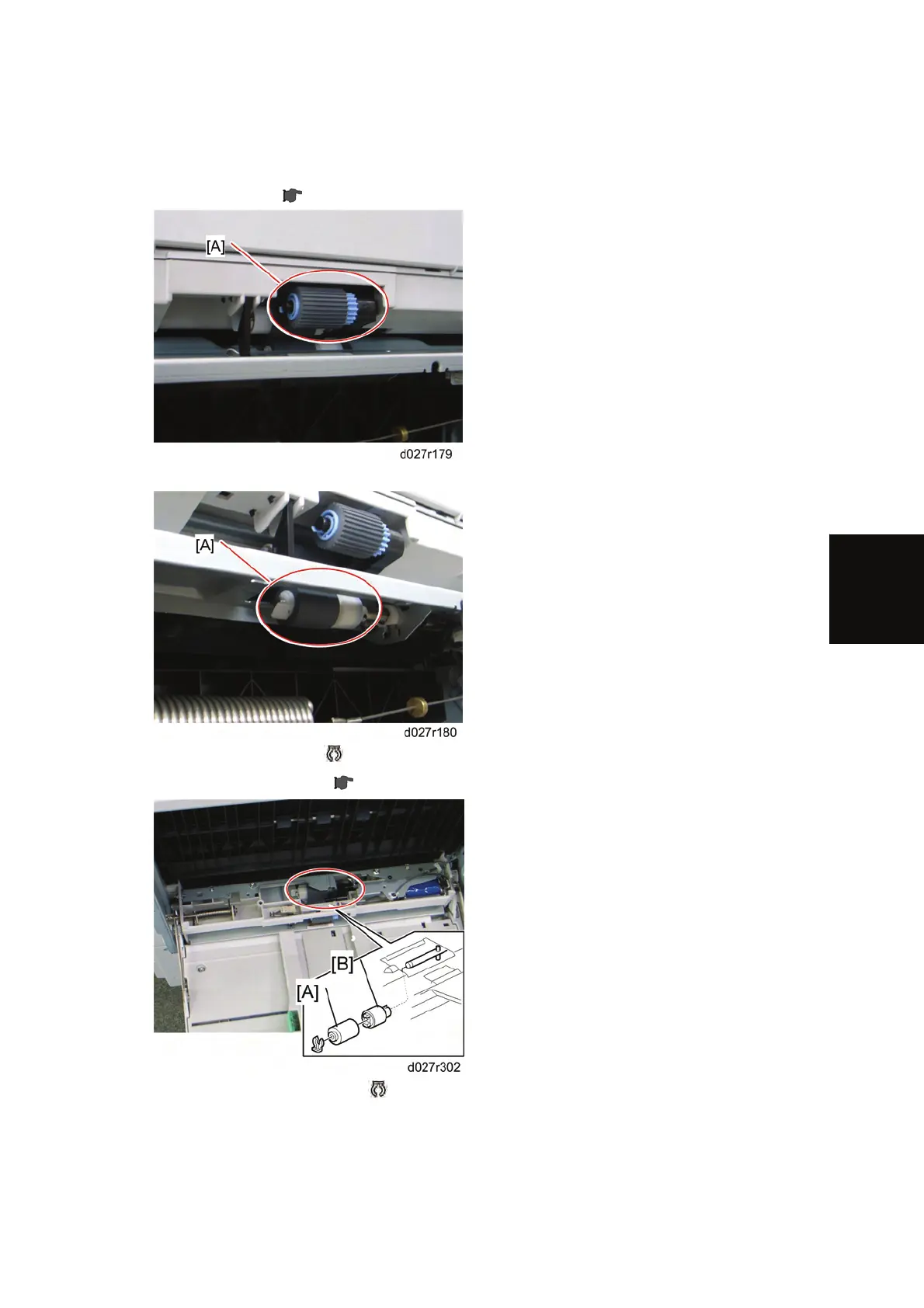

4.12.9 BY-PASS PICK-UP, FEED AND SEPARATION ROLLER,
TORQUE LIMITER
1. Right door cover ( p.4-136 "By-pass Bottom Tray")
2. By-pass pick-up roller [A] (hook)
3. By-pass feed roller [A] ( x 1)
4. By-pass feed unit cover (
p.4-138 "By-pass Paper End Sensor")
5. By-pass separation roller [A] (
x 1)
6. Torque limiter [B]
