Key Counter Bracket Type H (A674)
D086/D087 2-80 SM
2.20 KEY COUNTER BRACKET TYPE H (A674)
2.20.1 INSTALLATION PROCEDURE

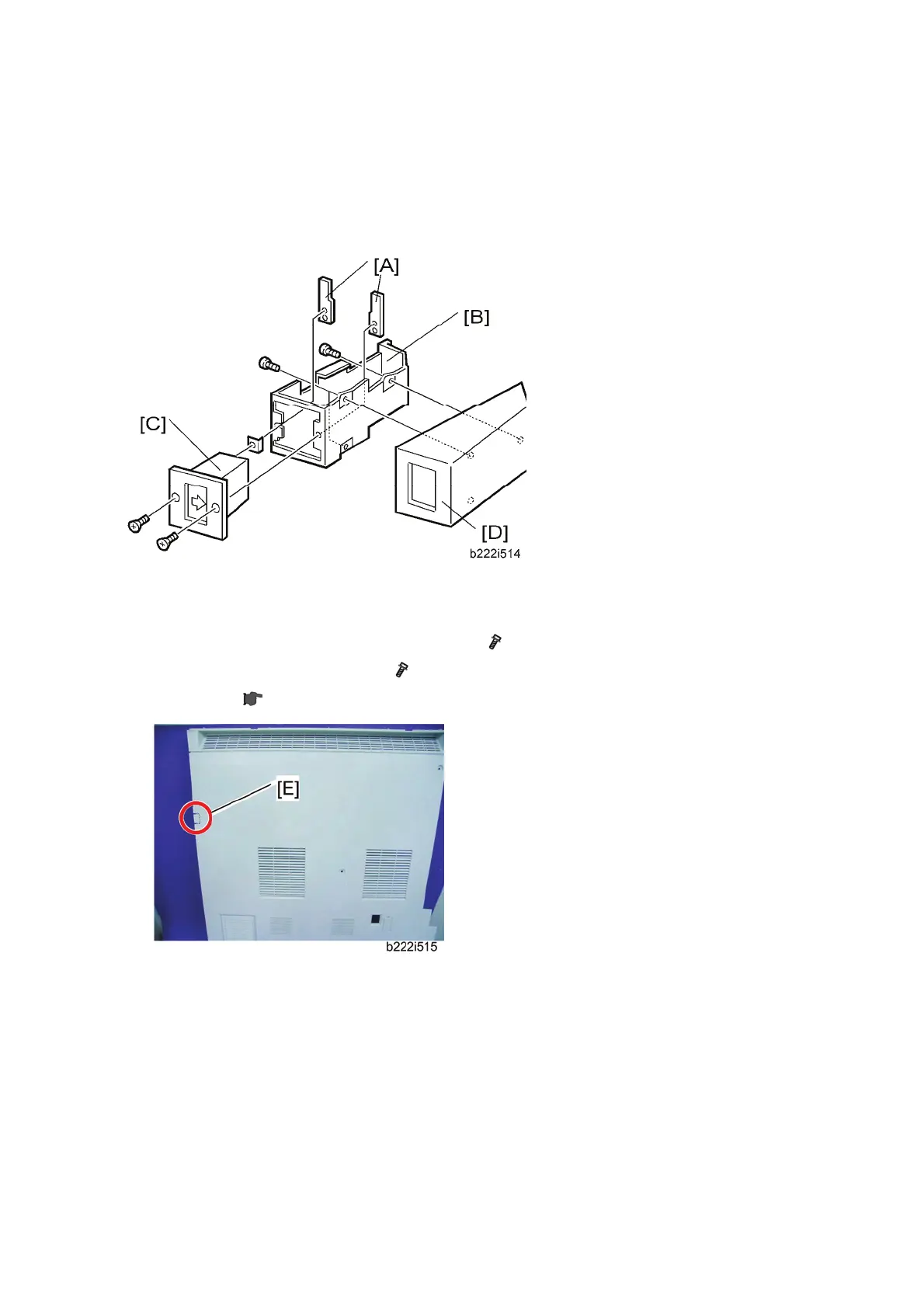

1. Hold the key counter plate nuts [A] on the inside of the key counter bracket [B] and insert
the key counter holder [C].
2. Secure the key counter holder to the bracket (
x 2).
3. Install the key counter cover [D] (
x 2).
4. Rear cover (
p.4-19)
5. Cut off the part [E] of the rear cover.
To Next Page
