Ricoh Aficio MP C3501

1000-Sheet
Finisher
B408
MOTORS
SM 3 B408
1.3 MOTORS

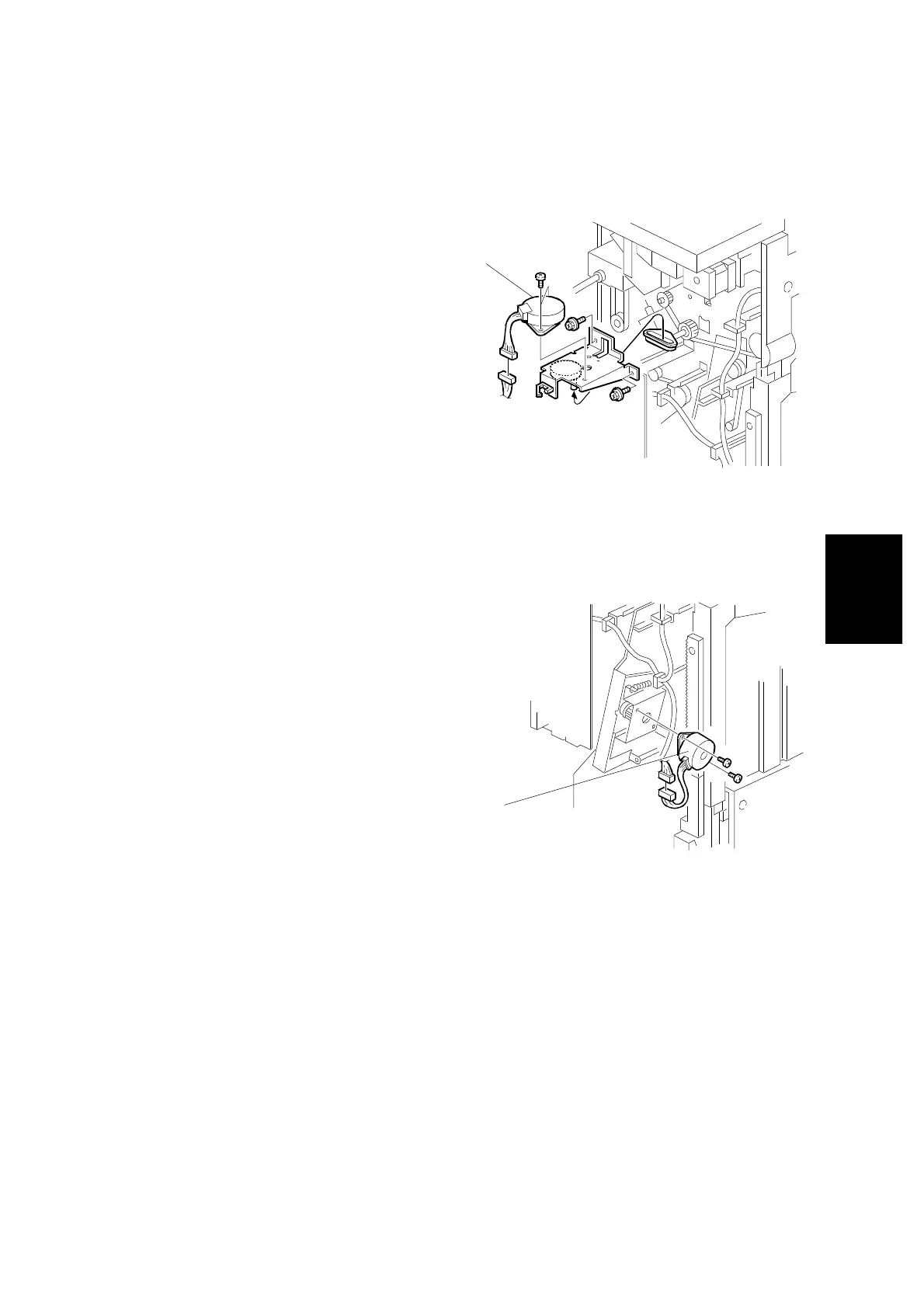

1.3.1 SHIFT MOTOR
1. Rear cover (

1.1)
2. Shift motor [A] (

x 2,

x 1)
1.3.2 STAPLER MOTOR
1. Rear cover (

1.1)
2. Stapler motor [A] (

x 2,

x 1)
B408R123.WMF
B408R124.WMF
[A]
[A]
