Copier Installation
D086/D087 2-8 SM
2.3 COPIER INSTALLATION
Make sure that the image transfer belt is in its correct position (away from the
PCDUs) before you move the machine. Otherwise, the image transfer belt and the
black PCDU can be damaged.

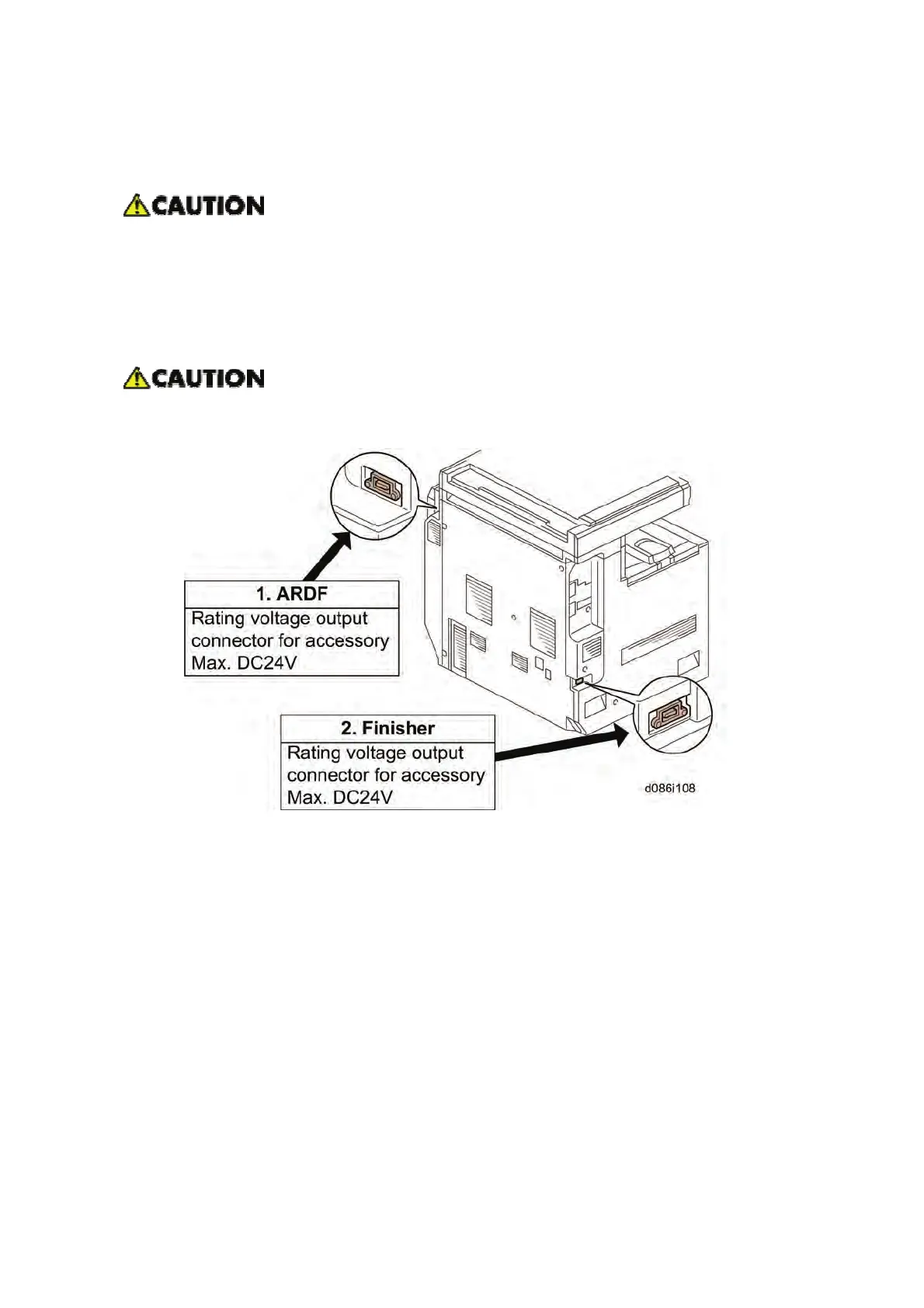

2.3.1 POWER SOCKETS FOR PERIPHERALS
Rating voltage for peripherals.
Make sure to plug the cables into the correct sockets.
