Ricoh Aficio MP C3501 Service Manual

Optional Counter Interface Unit Type A (B870)
D086/D087 2-82 SM
2.21 OPTIONAL COUNTER INTERFACE UNIT TYPE A
(B870)
2.21.1 INSTALLATION PROCEDURE
1. Rear cover ( p.4-19)
2. IOB bracket (
p.4-153 "Controller Box")

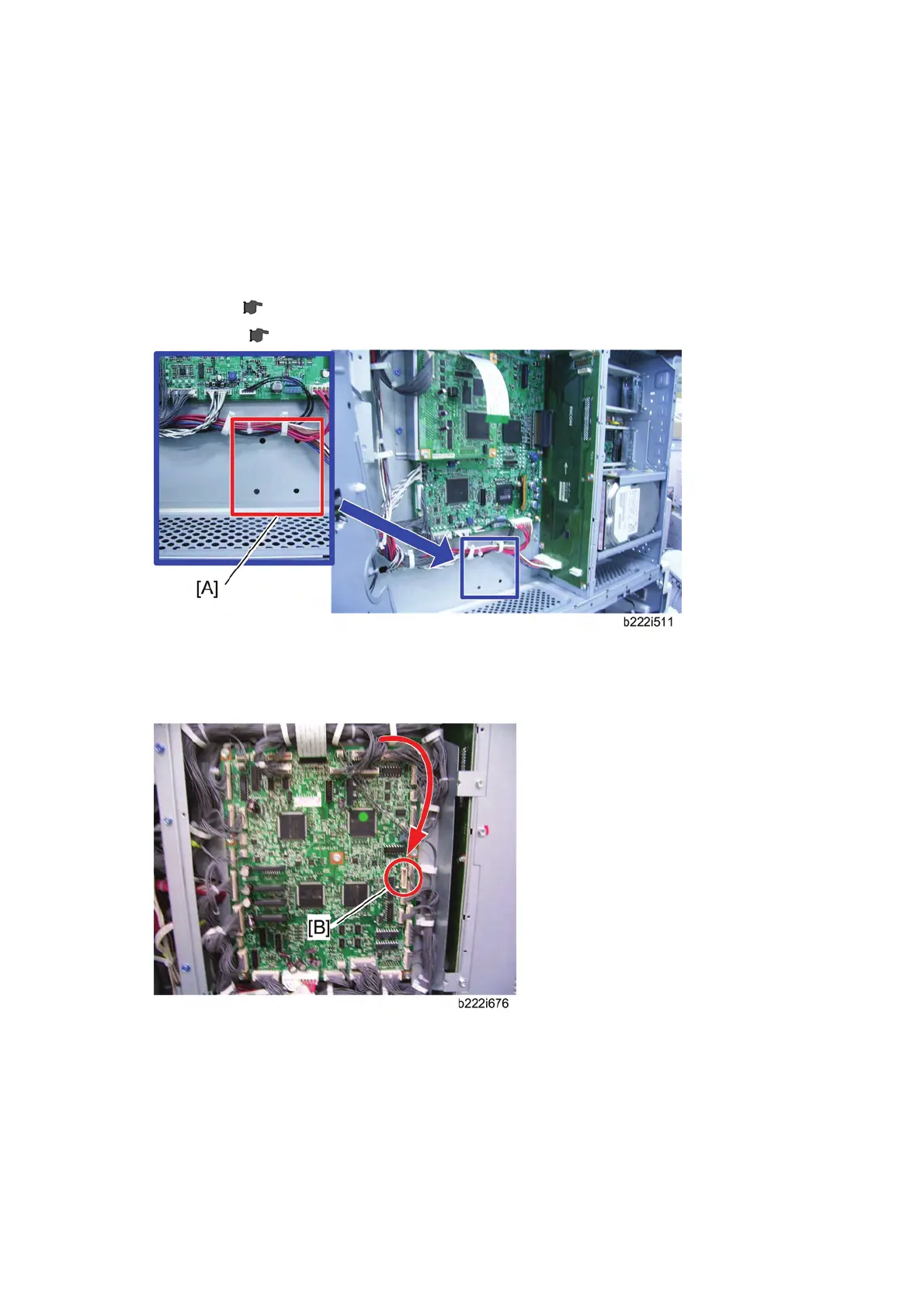

3. Install the four stud stays in the location [A] in the controller box.
4. Install the key counter interface board on the four stud stays in the controller box.
5. Connect the harness to CN3 on the key counter interface board.
6. Close the IOB bracket and connect the other terminal to CN215 [B] on the IOB.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
