Ricoh Aficio MP C3501 Service Manual

Optional Counter Interface Unit Type A (B870)
SM 2-83 D086/D087
Installation

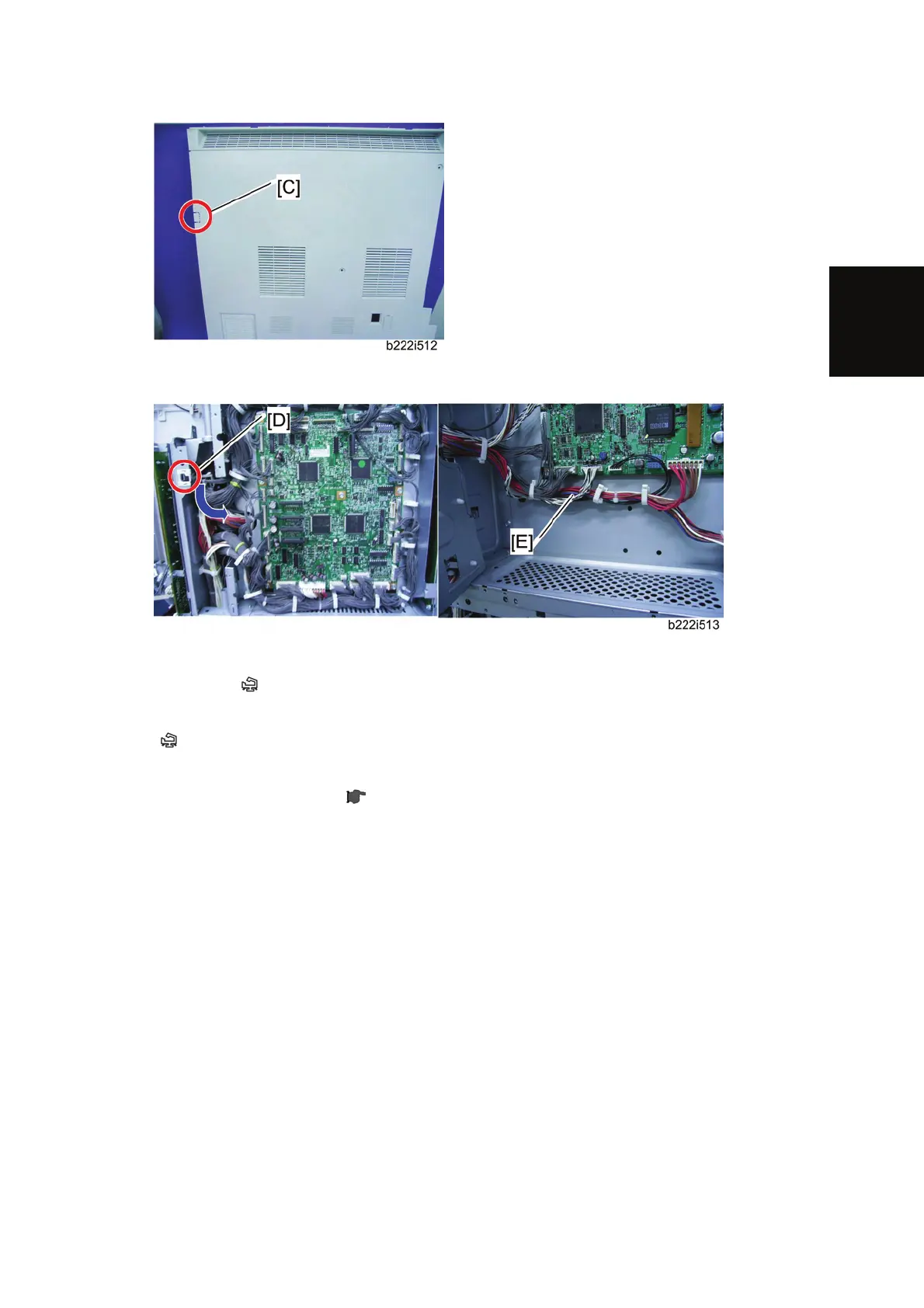

7. Cut off the part [C] of the rear cover.
8. Clamp the harness from the counter device with the clamp [D] and put it as shown by the
blue arrow ( x 1).
9. Route the harness from the counter device in the same way as the other harnesses [E]
(
x 3).
10. Connect the harness from the counter device to CN4 on the key counter interface board.
11. Reattach the IOB bracket (
p.4-153 "Controller Box").
12. Reassemble the machine.

Ricoh Aficio MP C3501 Specifications

General

Print Technology	Laser
Print Speed (Color)	35 ppm
Print Speed (Monochrome)	35 ppm
Maximum Print Resolution	1200 x 1200 dpi
Standard Paper Capacity	1, 200 sheets
Maximum Paper Capacity	4, 400 sheets
Duplex Printing	Yes
Maximum Scan Resolution	600 dpi
Copier Resolution	600 dpi
Fax Capability	Optional
Memory (Maximum)	1.5 GB
Network Connectivity	Ethernet
Connectivity	USB 2.0, Ethernet 10/100Base-TX
Functions	Print, Copy, Scan
Hard Disk Drive	160 GB
Scan Speed	50 ipm
Operating System Compatibility	Windows, Mac, Linux
