Ricoh Aficio MP C3501

Fusing
SM 4-105 D086/D087
Replacement
and
Adjustment
4.11.5 HEATING ROLLER AND HEATING ROLLER BEARING
1. Fusing unit ( p.4-99)

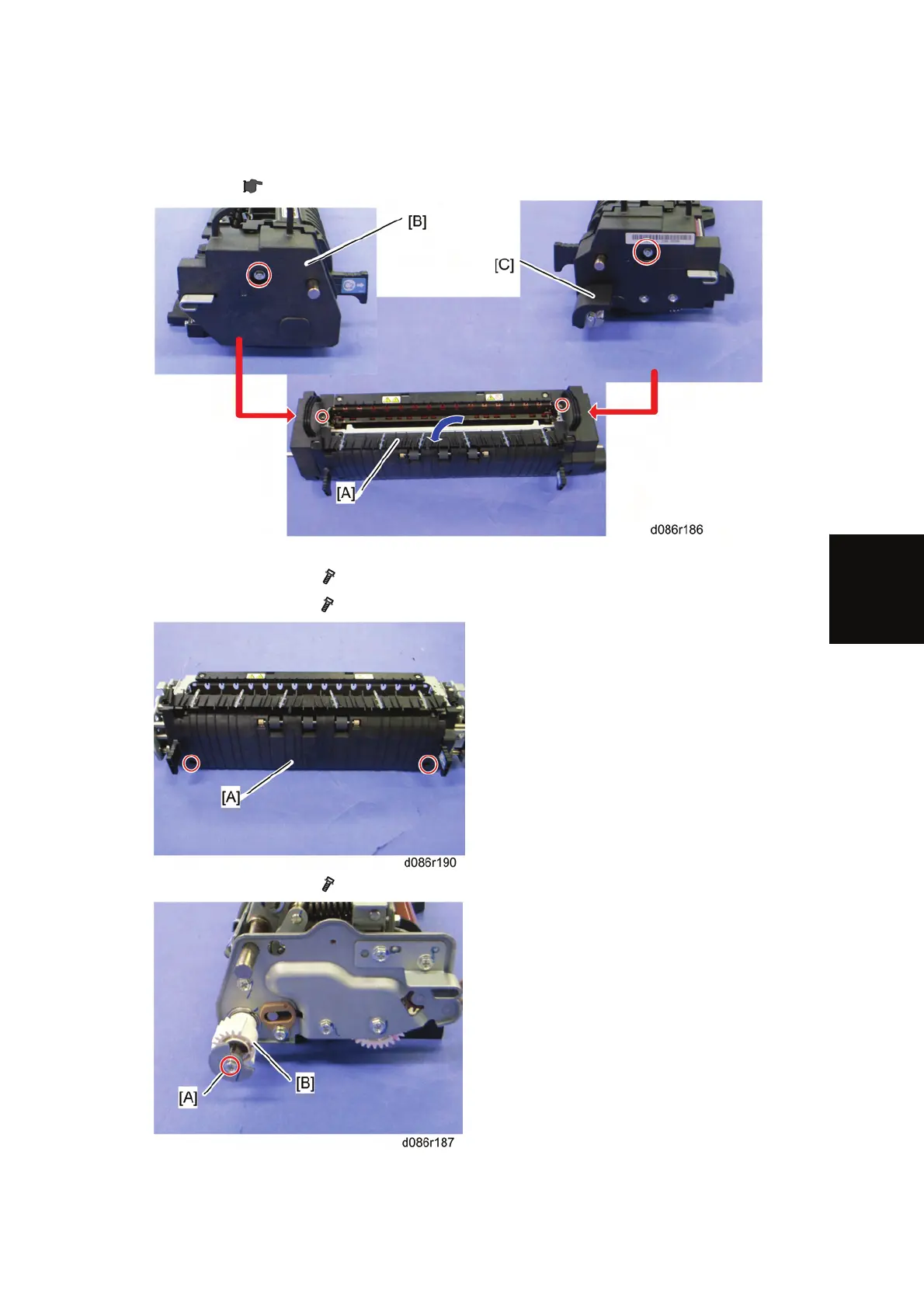

2. Open the jam removal door [A].
3. Front fusing cover [B] (
x 2; Stepped screws)
4. Rear fusing cover [C] (
x 2; Stepped screws)
5. Fusing right cover [A] ( x 2; Stepped screws)
