Ricoh Aficio MP C3501

Fusing
D086/D087 4-106 SM

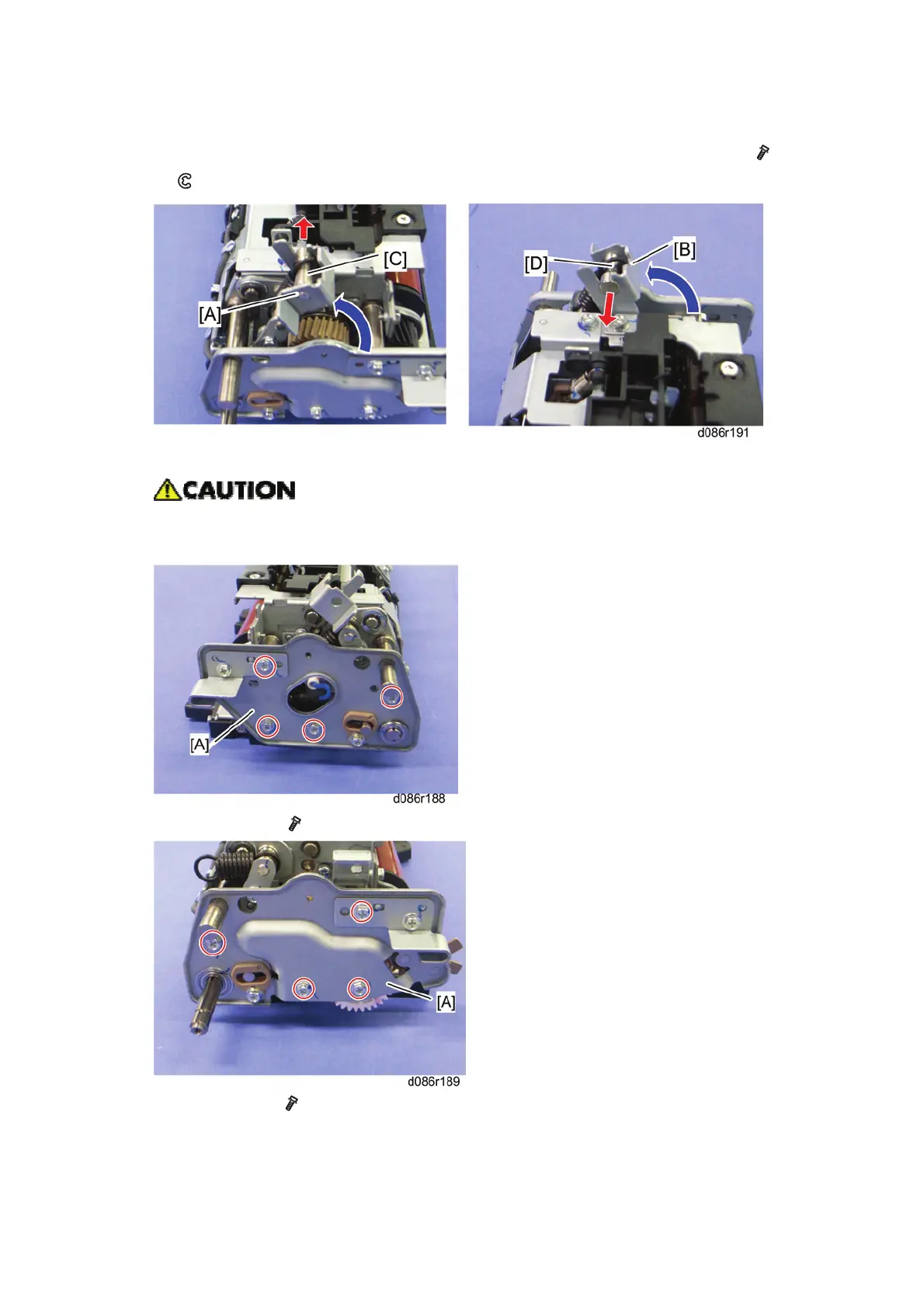

6. Pressure roller contact shaft actuator [A] and pressure roller contact shaft gear [B] (
x
1,
x 1)
7. Turn both pressure levers [A] [B], and pull out pins [C] [D].
 If the pins [C] [D] are not pulled out in this step, the fusing unit frames may
become bent.
8. Front bracket [A] (
x 4)
9. Rear bracket [A] ( x 4)
