Paper Feed
D086/D087 4-134 SM
4.12.4 VERTICAL TRANSPORT, PAPER OVERFLOW, PAPER
END AND PAPER FEED SENSOR
1. Rear cover ( p.4-19)
2. Right rear cover (
p.4-19)
3. Paper feed unit (
p.4-129)

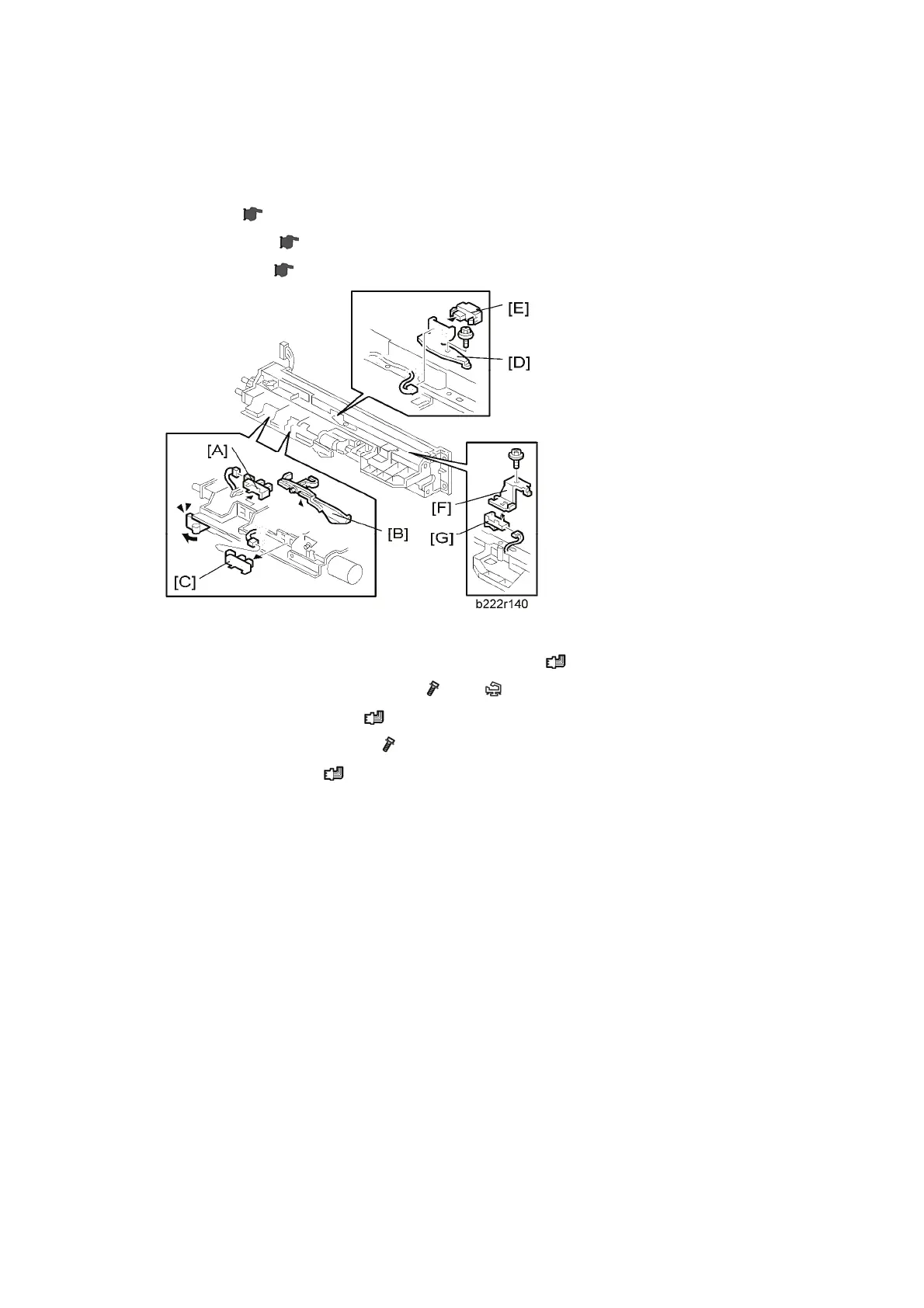

4. Paper overflow sensor [A]
5. Paper end feeler [B] and paper end sensor [C] (hook,
x 1 each)
6. Vertical transport sensor bracket [D] (
x 1, x 1)
7. Vertical transport sensor [E] (
x 1, hook)
8. Paper feed sensor bracket [F] (
x 1)
9. Paper feed sensor [G] (
x 1, hook)
