Ricoh Aficio MP C3501

Scanner Unit
SM 4-25 D086/D087
Replacement
and
Adjustment

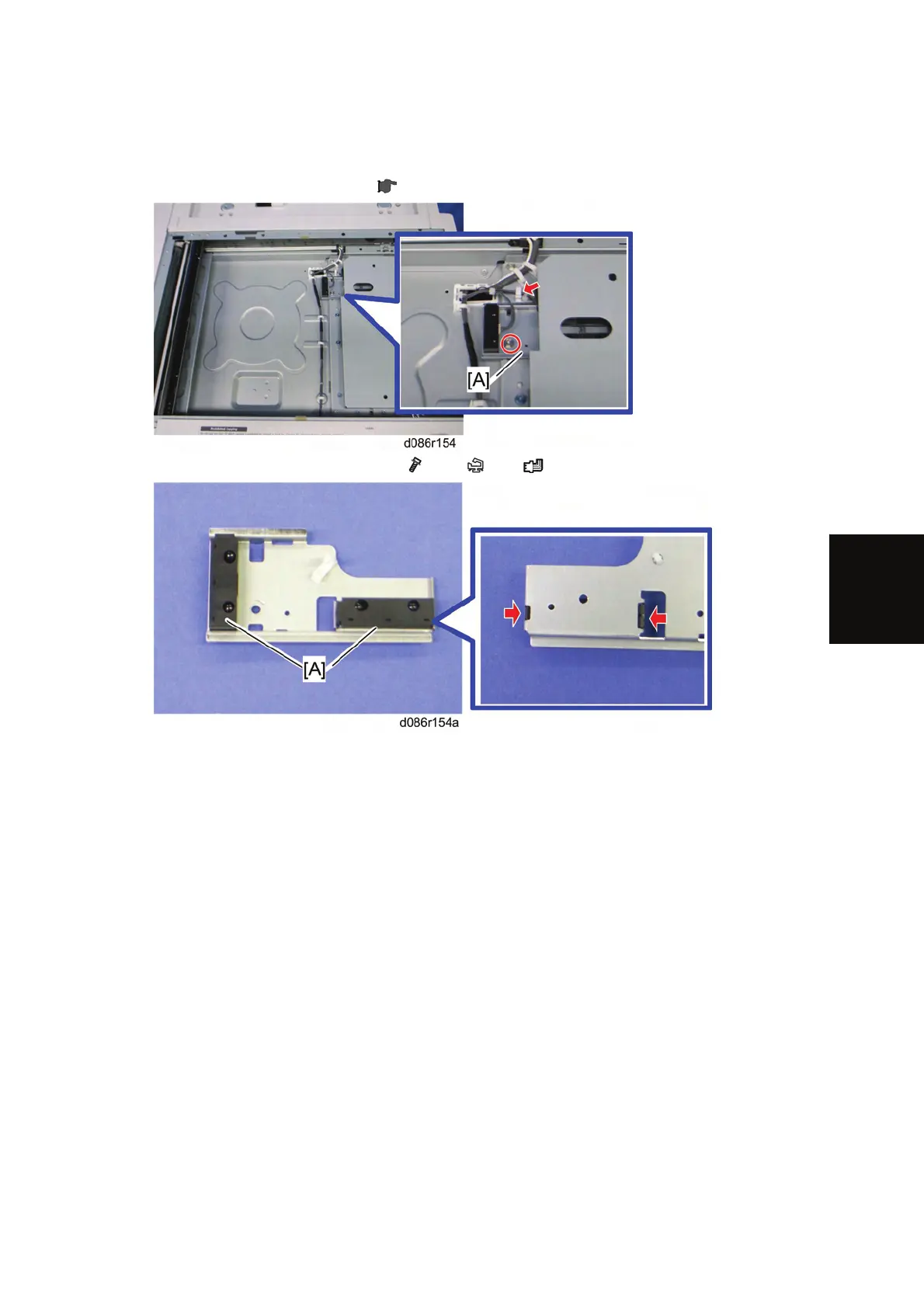

4.5.2 ORIGINAL LENGTH SENSORS
1. Exposure glass with left scale ( p.4-24)
2. Original length sensor bracket [A] (
x 1, x1, x 2)
3. Original length sensors [A] (hooks)
