Image Transfer
D086/D087 4-70 SM
When reinstalling the image transfer belt
Clean all rollers with dry cloth before installing the image transfer belt.

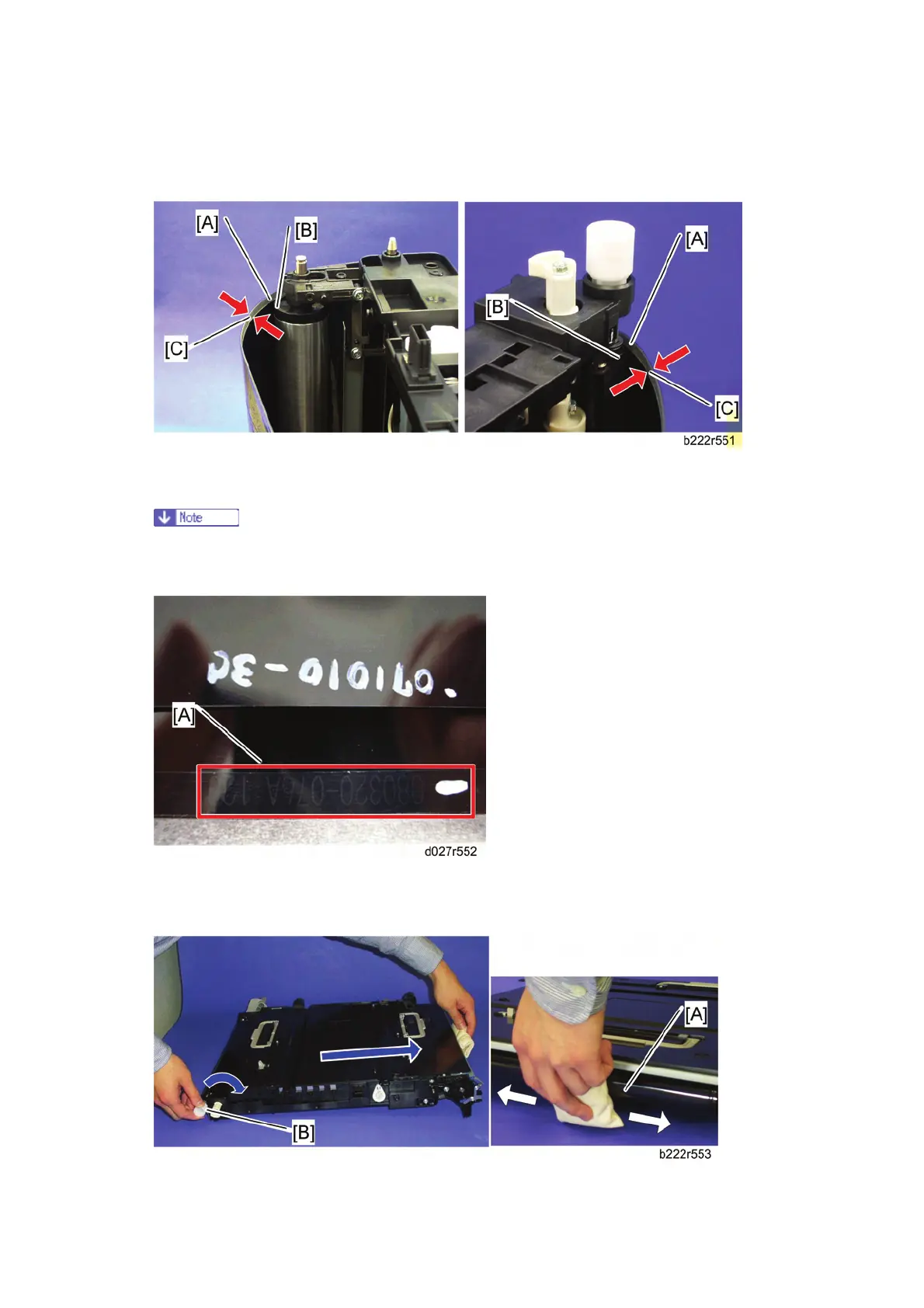

There is a rim [A] at each edge of the transfer belt. The ends of all the rollers ([B] for
example) in the transfer belt unit must be between the two rims.
There are two rims (width [C]: about 5 mm) on the underside of the front and
rear edges of the image transfer belt.
This belt must be installed the correct way around. When you reinstall the image transfer
belt unit, install it with the number [A] on the belt at the rear side of the unit.
